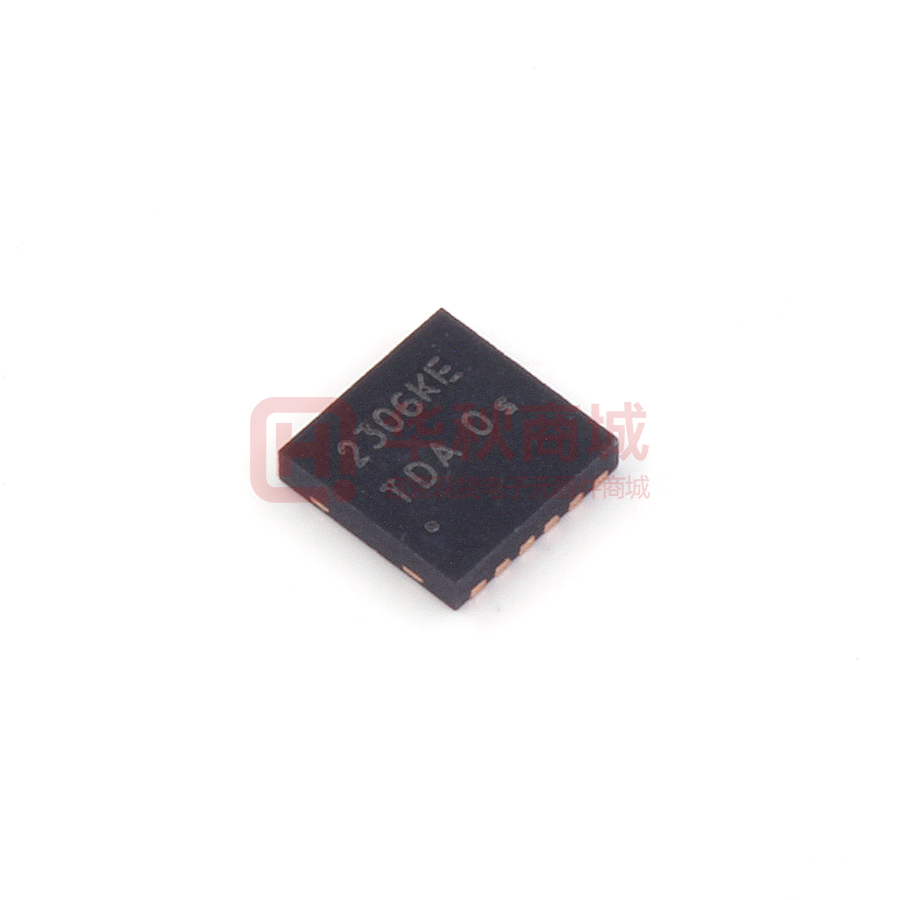

Images are for reference only

PAM2306AYPKE

  • Mfr Part #PAM2306AYPKE
  • ManufacturerDIODES
  • HQ Part #IC0336715
  • PackageUDFN12_3X3MM_EP
  • Lead Time Ship immediately
  • DescriptionWDFN-12L-EP(3x3) DC-DC Converters ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity12Pins
Output Current1A
Type Of OutputFixed
FunctionBuck
Output ConfigurationPositive
Number Of Outputs2
Switching Frequency 1.5MHz
Topological Structure -
Package / CaseUDFN12_3X3MM_EP
Installation TypeSMT
Input Voltage Range2.5V~5.5V
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
BrandDiodes
Height0.60mm
Size3.00 x 3.00mm
Operating Temperature-40℃
SeriesOriginal
