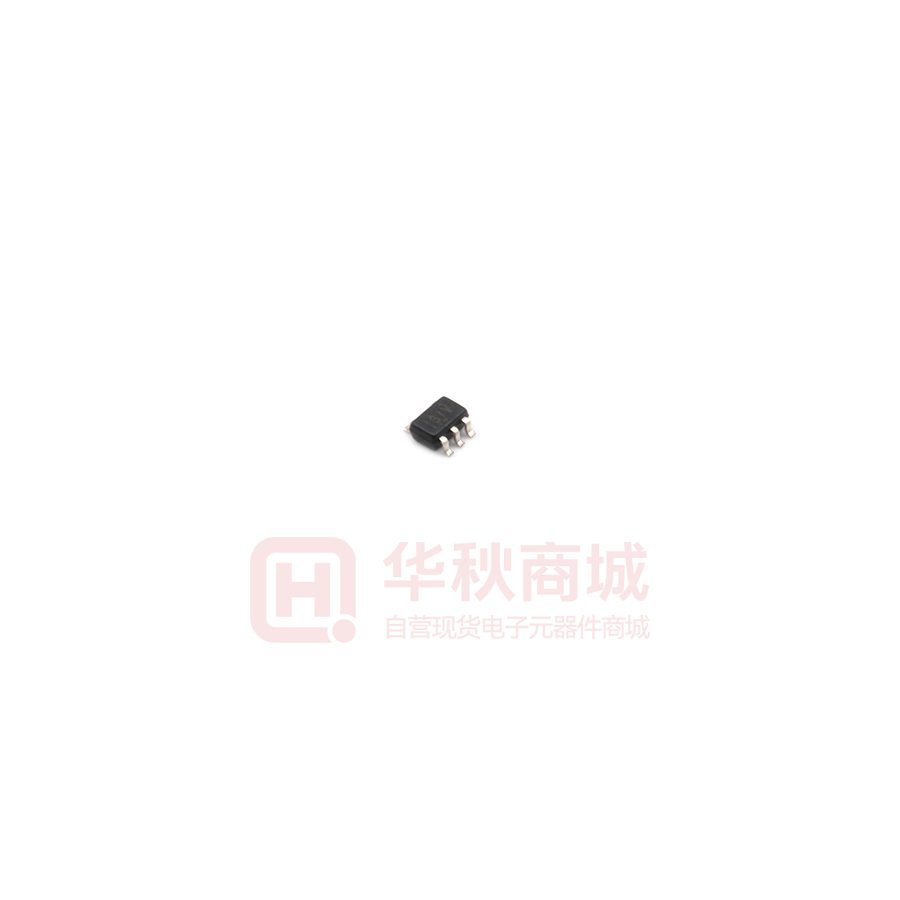

Images are for reference only
TLV3691IDCKR
- Mfr Part #TLV3691IDCKR
- ManufacturerTI
- HQ Part #IC0121018
- PackageSC-70-5
- Lead Time Ship immediately
DescriptionSC-70-5 Comparators ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Output Current | 42mA | |
| Input Bias Current | 100pA | |
| Type Of Output | Push-Pull | |
| Operating Temperature | -40℃~+125℃ | |
| Installation Type | SMT | |
| Input Offset Voltage (Vos) | 3mV | |
| Quiescent Current (Max) | 150nA | |
| Supply Voltage, Single/Double (±) | 0.9V~6.5V,±0.45V~±3.25V | |
| Package / Case | SC-70-5 | |
| Propagation Delay Time | 35μs | |
| Response Time | 24μs | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 5Pin | |
| Height | 1.10mm | |
| L x W/Size | 2.00 x 1.25mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Supply Voltage | 900mV~6.5V;450mV~3.25V | |
| Number Of Channels | Single channel |
