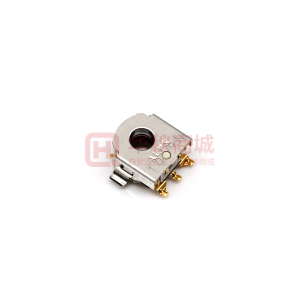

Images are for reference only
EC05E1220401
- Mfr Part #EC05E1220401
- ManufacturerALPS
- HQ Part #SW0049632
- PackageSW5_5.7X6.2MM_SM
- Lead Time Ship immediately
DescriptionIncremental rotary encoder 7.6x6.2x2.7mm 1.6N 1000000次 0.55mA 5VDC
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | SW5_7.6X6.2MM_SM | |
| Supply Voltage | 5VDC | |
| Installation Type | SMT | |
| Rated Current-DC | 0.55mA | |
| Lead Quantity | 5Pin | |
| Contact Form | DPST-NO | |
| Partlife Cycle | Active | |
| MPQ | 2000pcs | |
| Country of Origin | Japan | |
| Original Manufacturer | ALPS Alpine Co., Ltd. | |
| Brand | ALPS | |
| Switch Function | - | |
| Built In Switch | - | |
| Speed Fbk Sel | - | |
| Part Status | Active | |
| Series | EC05 | |
| Lead Free Or Not | Yes | |
| Size | 7.60 x 6.20mm | |
| Operating Force | 1.6N | |
| Operating Life | 100000Cycles | |
| Type Of Output | - | |
| Rated Voltage - Dc | 5V | |
| Operating Temperature | -30~+85℃ | |
| Height On Board | 0.106"（2.70mm） |
