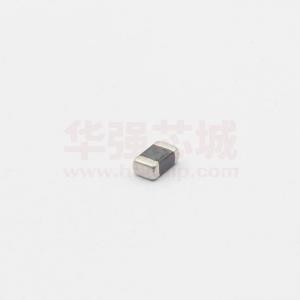

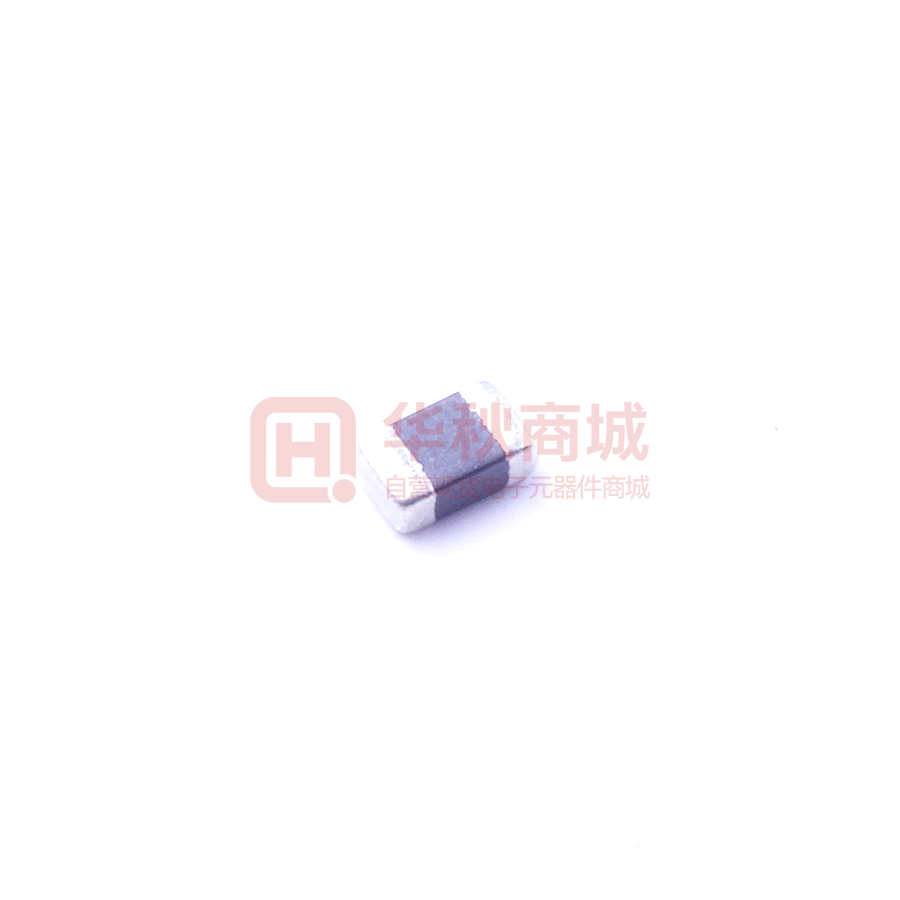

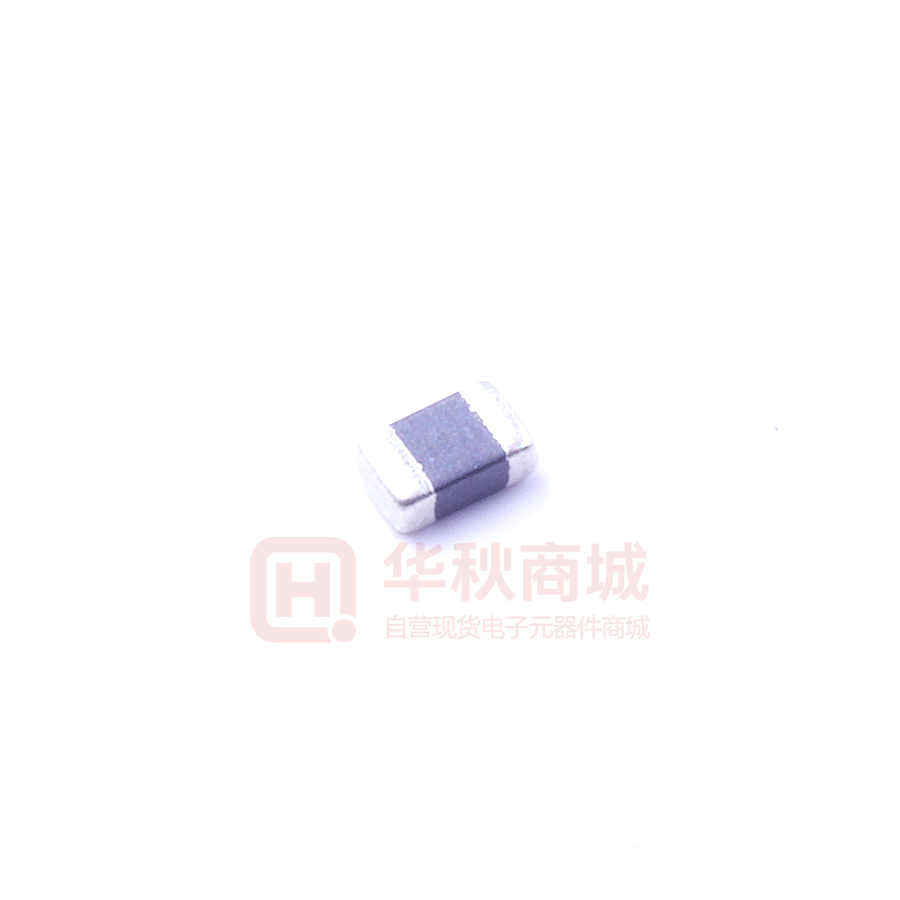

Images are for reference only

Chip Bead Murata BLM21PG220SN1D

  • Mfr Part #BLM21PG220SN1D
  • ManufacturerMurata
  • HQ Part #WF0011770
  • Package0805
  • Lead Time Ship immediately
  • DescriptionChip Bead 22Ω@100MHz ±25% 0805 9mΩ 6A

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Impedance @ 100Mhz22Ω
DC Resistance (DCR)9mΩ
Rated Current6A
Impedance At Different Frequencies-
Number Of Lines1
Maximum Height0.85mm
Filter Type-
Size2.00 x 1.25mm
Package / Case0805
Operating Temperature-55℃~125℃
Installation TypeSMT
Lead Spacing1.5mm
Lead Quantity2Pins
Partlife CycleActive
Application LevelGeneral
Storage Temperature-55~+125℃
Country of OriginJapan
Original ManufacturerMurata Manufacturing Co., Ltd.
Material ScienceFerrite
Number Of Channels1
Manufacturer'S Standard Lead Time-
Moisture Sensitivity Level (Msl)-
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
4,019 In Stock
Minimum50 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
50+$0.01426 $0.71300
150+$0.01278 $1.91700
1000+$0.01131 $11.31000
5000+$0.01032 $51.60000
