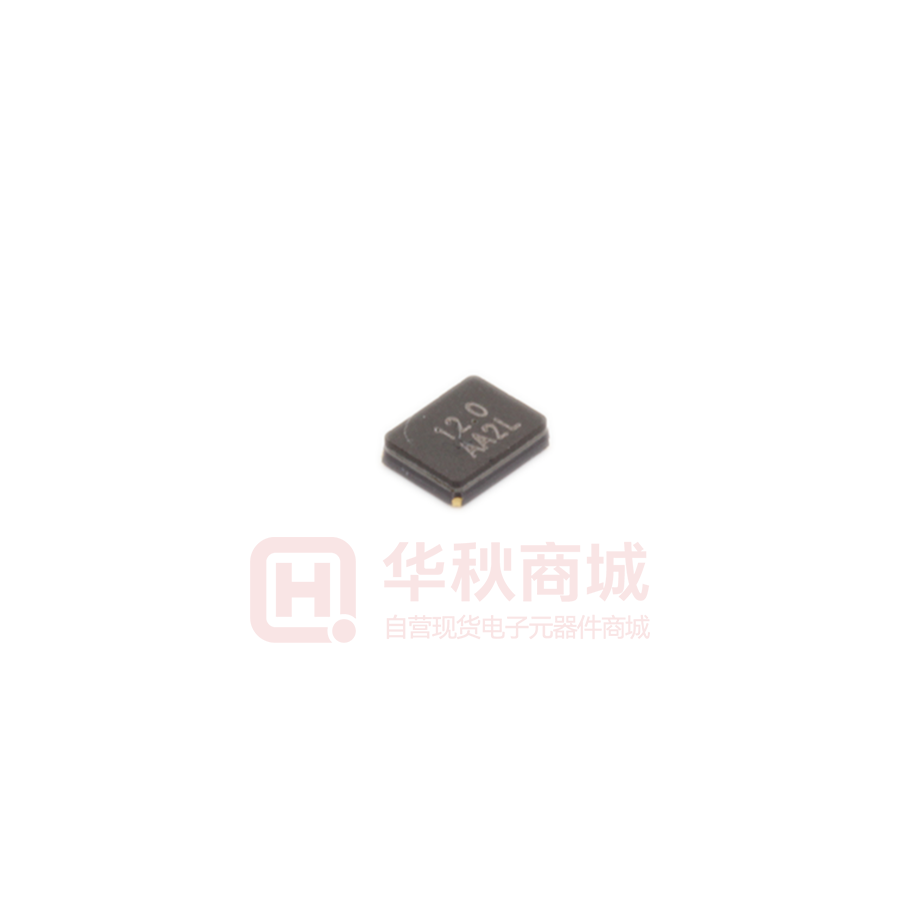

Images are for reference only
ABM8G-12.000MHZ-18-D2Y-T
- Mfr Part #ABM8G-12.000MHZ-18-D2Y-T
- ManufacturerAbracon
- HQ Part #CR0076104
- PackageSMD3225_4P
- Lead Time Ship immediately
DescriptionCeramic Resonators ±30ppm ±20ppm SMD3225_4P 12MHz
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Built In Load Capacitance | 10pF | |
| Annual Aging Rate | ±3ppm/year | |
| Lead Quantity | 4Pin | |
| Dominant Frequency | 12MHz | |
| Installation Type | SMT | |
| Frequency Error | ±20ppm | |
| Size | 3.20 x 2.50mm | |
| Package / Case | SMD3225_4P | |
| Operating Temperature | -40℃~+85℃ | |
| Overtone | Fundamental | |
| Material | Quartz Crystal | |
| Pb Free | Yes | |
| Product State | Active | |
| Insulation Resistance | 500MΩ @ DC100V | |
| Drive Level | 10μW | |
| Shunt Capacitance(C0) | 5pF | |
| Partlife Cycle | Active | |
| Carries tape Std | 8.0mm | |
| Storage Temperature | -40℃~+85℃ | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Abracon Corporation | |
| Frequency Stability | ±30ppm | |
| Series | ABM8G | |
| Equivalent Series Resistance | 120Ω | |
| Height | 1.00mm |
