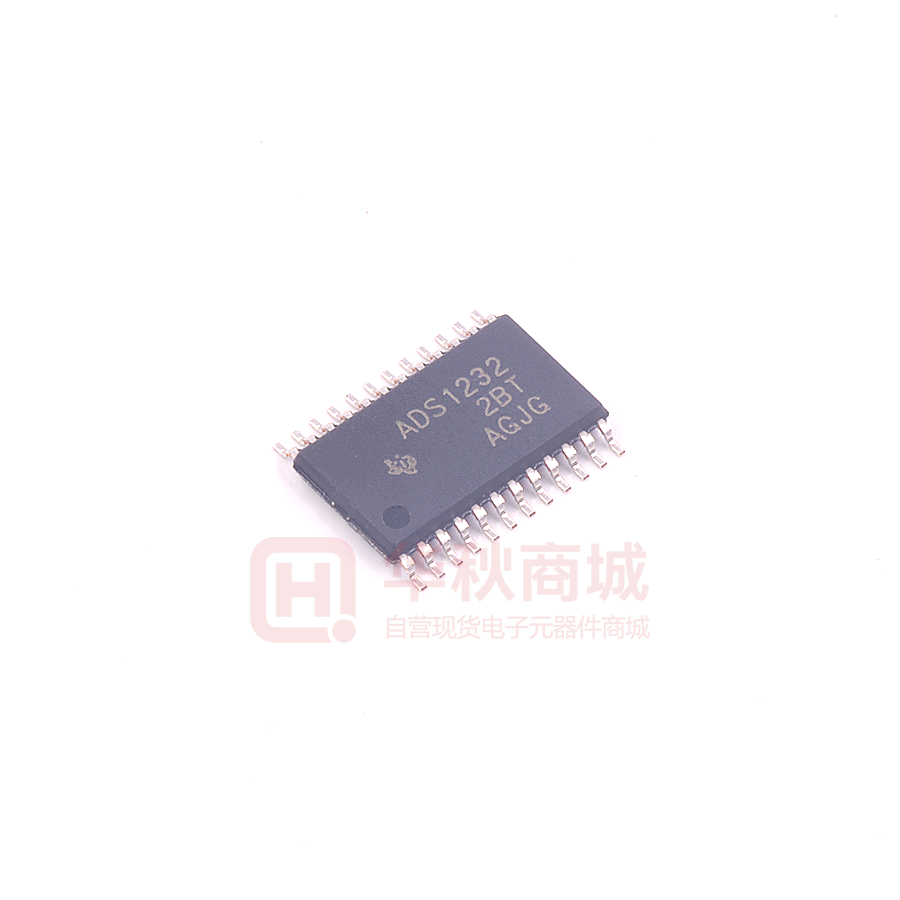

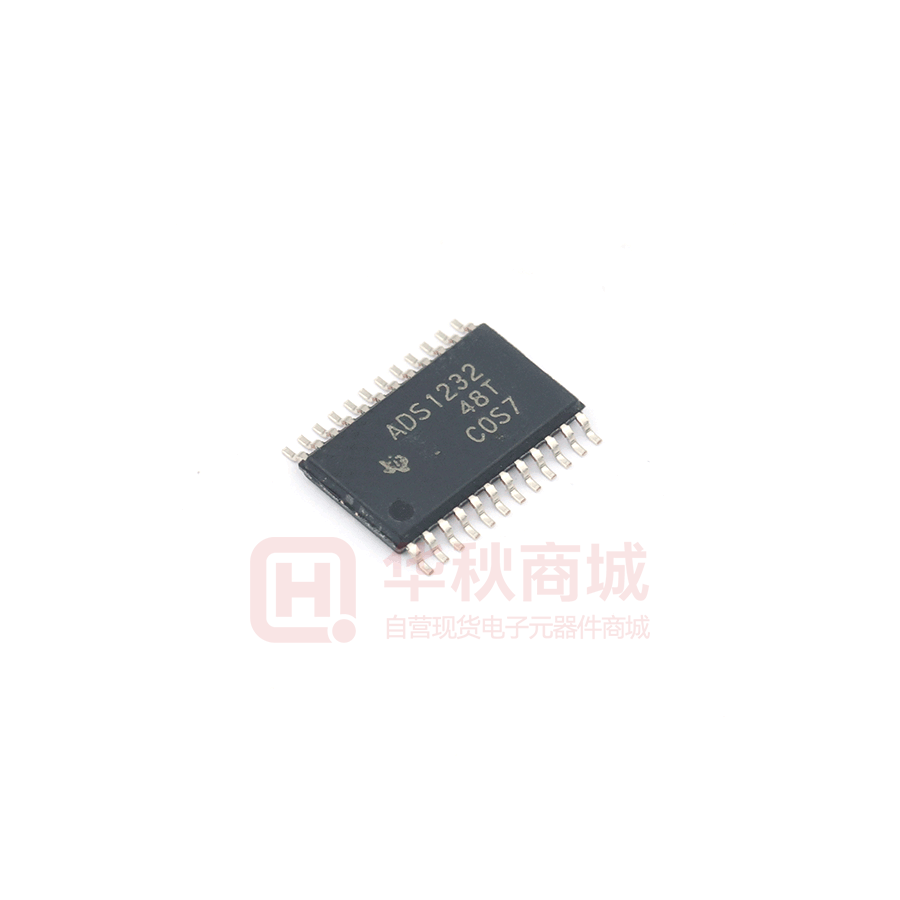

Images are for reference only
ADS1232IPWR
- Mfr Part #ADS1232IPWR
- ManufacturerTI
- HQ Part #IC0103157
- PackageTSSOP24_7.8X4.4MM
- Lead Time Ship immediately
DescriptionAnalog to Digital Converters (ADCs) TSSOP24 SPI 24bit 2.7V~5.3V -40℃~+105℃
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Number Of ADC Converters | 1 | |
| Number Of Input Ports | 2 | |
| Sampling Rate | 80SPS | |
| Architecture Technology | - | |
| Power Supply Voltage (Digital Terminal) | 2.7V~5.3V | |
| Supply Voltage (Analog Terminal) | 2.7V~5.3V | |
| Number Of DAC Converters (Channels) | 1 | |
| Characteristic | PGA | |
| Package / Case | TSSOP24_7.8X4.4MM | |
| Installation Type | SMT | |
| Application | Industrial,PORTABLE INSTRUMENTATION | |
| Reference type | - | |
| Number of Converters | 1 | |
| Interface Type | SPI | |
| Lead Quantity | 24Pins | |
| Partlife Cycle | Active | |
| Storage Temperature | -60~+150℃ | |
| Height | 1.20mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Brand | TI | |
| Size | 7.80 x 4.40mm | |
| Resolution (Bit) | 24b | |
| Input Type | - | |
| Power | 4.3mW | |
| Number Of Channels | 2,4Channel | |
| Data Interface | SPI | |
| Type Of Output | Digital | |
| Digit | 24bit | |
| Operating Temperature | -40~+105 | |
| Supply Voltage | 5.3V | |
| To Configure | MUX-PGA-ADC | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
