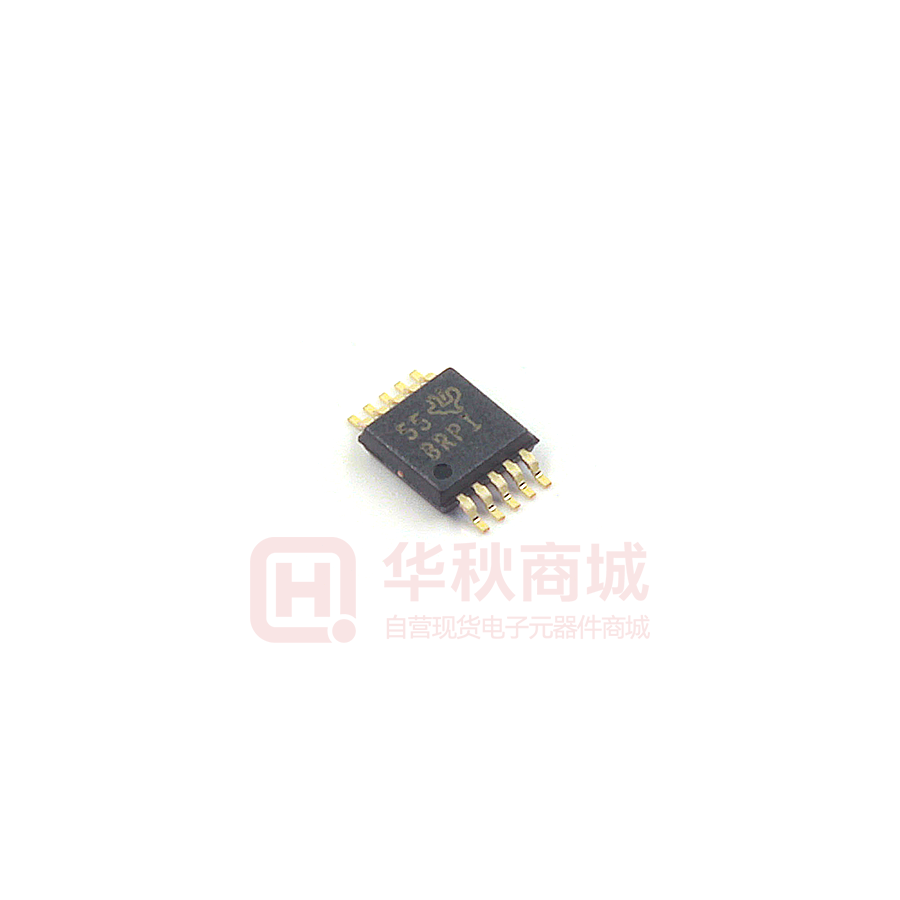

Images are for reference only
ADS1015IDGSR
- Mfr Part #ADS1015IDGSR
- ManufacturerTI
- HQ Part #IC0103052
- PackageVSSOP10_3X3MM
- Lead Time Ship immediately
DescriptionVSSOP-10-0.5mm Analog To Digital Converters (ADCs) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Number Of ADC Converters | 1 | |
| Number Of Input Ports | 2，4 | |
| Sampling Rate | 3.3k | |
| Architecture Technology | - | |
| Power Supply Voltage (Digital Terminal) | 2V~5.5V | |
| Supply Voltage (Analog Terminal) | 2V~5.5V | |
| Characteristic | - | |
| Package / Case | VSSOP10_3X3MM | |
| Installation Type | SMT | |
| Application | Consumer | |
| Reference type | - | |
| Number of Converters | 1 | |
| Interface Type | I²C | |
| Lead Quantity | 10Pins | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Height | 1.10mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Brand | TI | |
| Size | 3.00 x 3.00mm | |
| Resolution (Bit) | 12b | |
| Input Type | - | |
| Power | 0.5mW | |
| Number Of Channels | 2,4Channel | |
| Data Interface | I²C | |
| Type Of Output | Digital | |
| Digit | 12bit | |
| Operating Temperature | -40~+125℃ | |
| Supply Voltage | 5.5V | |
| To Configure | MUX-PGA-ADC | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
