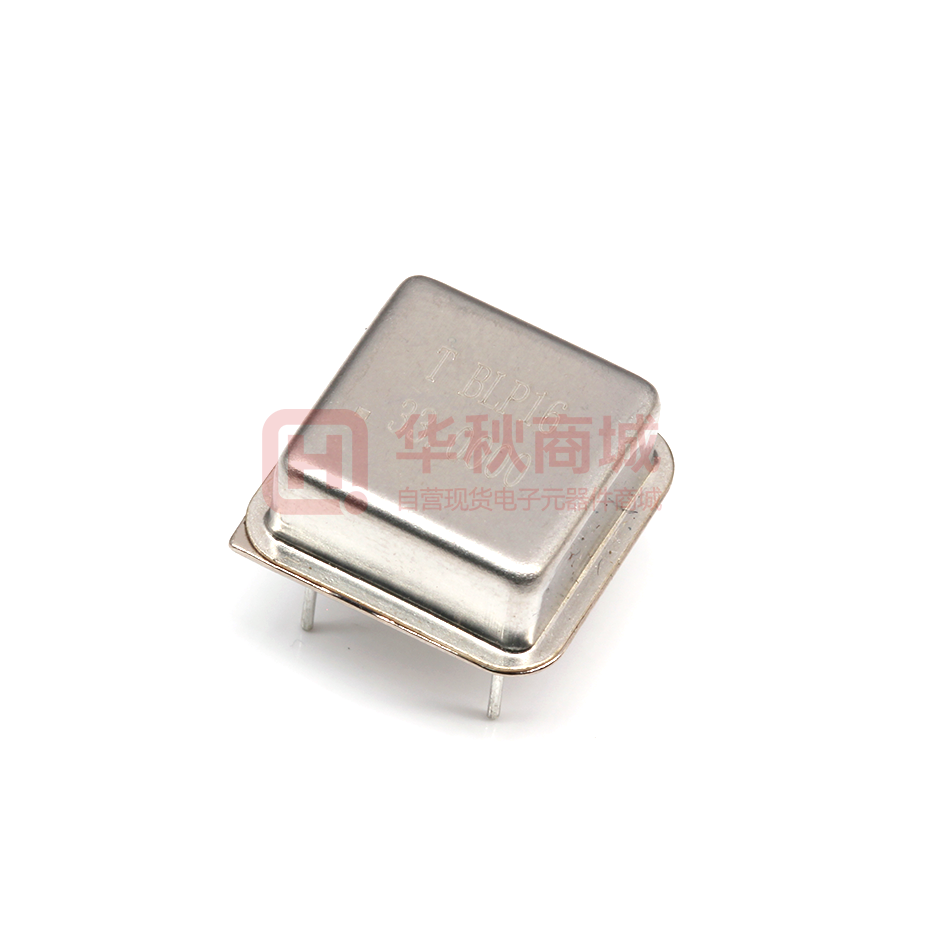

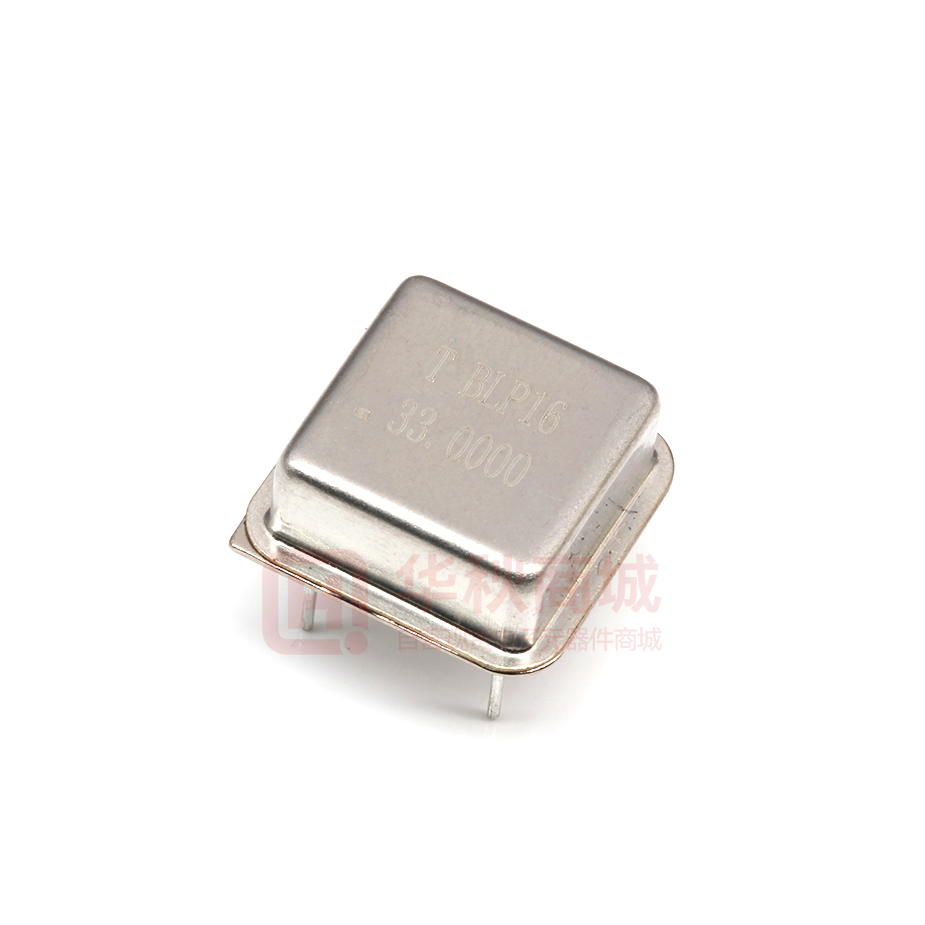

Images are for reference only

6RH33000G33YC

  • Mfr Part #6RH33000G33YC
  • ManufacturerSJK
  • HQ Part #CR0252060
  • PackageDIP-8
  • Lead Time Ship immediately
  • DescriptionActive Crystal Oscillators 15pF 33MHz 3.3V ±30ppm DIP-8

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Annual Aging Rate±3ppm/year
Lead Quantity8Pin
Dominant Frequency33MHz
Dominant Frequency33MHz
Installation TypeDIP
Installation TypeDIP
Frequency Error±30ppm
Frequency Error±30ppm
TypeSPXO
Size12.90 x 12.90mm
Size12.90 x 12.90mm
Package / CaseDIP-8
Package / CaseDIP-8
Operating Temperature-40~+85℃
Operating Temperature-40~+85℃
Supply Voltage3.3V
Supply Voltage3.3V
Output typeCMOS
Current Consumption10mA
Control Voltage Range0.3~3V
Pb FreeYes
ApplicationConsumer
Product StateActive
Start up Time10ms
Tolerance±10%
Partlife CycleActive
Output Load15pF
Jitter0.5ps
Rise/Fall Time5.0ns
Storage Temperature-55~+125℃
CertificationRoHS
Country of OriginChina
Original ManufacturerShenzhen SJK Industrial Co., Ltd.
Frequency Stability±30ppm
Series6RH
GradeConsumer
Height5.30mm
Height5.30mm
