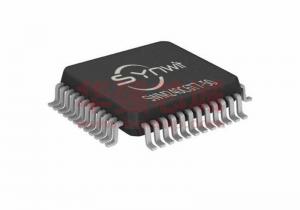

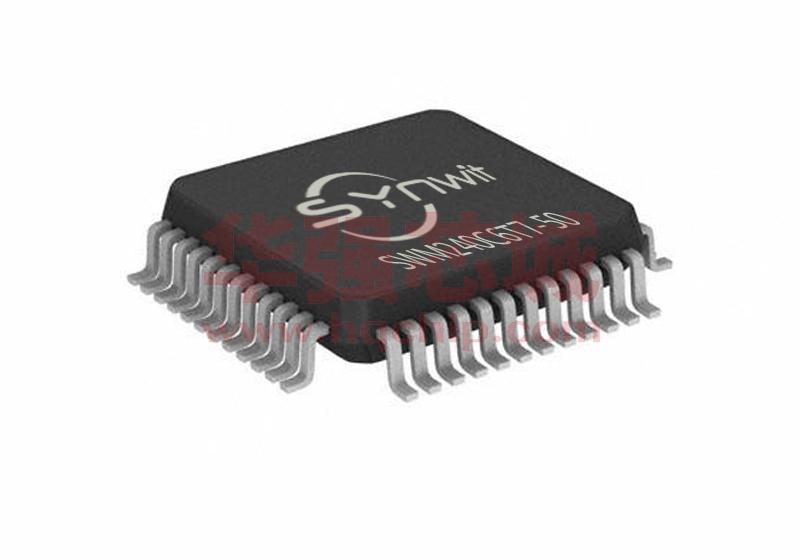

Images are for reference only

SWM240C6T7-50

  • Mfr Part #SWM240C6T7-50
  • ManufacturerSynwit
  • HQ Part #IC0443160
  • PackageLQFP48_7X7MM
  • Lead Time Ship immediately
  • DescriptionSWM240C6T7 is a 32-bit ARM® Cortex™-M0 microcontroller. With high performance, low power consumption, high code density and other advantages, suitable for industrial control and white goods and many other applications. An embedded 32-bit ARM® Cortex™-M0 controller includes a 24MHz/48MHz clock with accuracy up to 1% on the chip. 32K byte FLASH, 8K byte SRAM, support ISP (in system programming) operation and IAP (in application programming). The serial bus includes multiple UART interfaces, SPI communication interfaces and I2C interfaces. One 32-bit watchdog timer, four groups of 24-bit enhanced timers (one group supports HALL interface), three groups of 6-channel PWM control modules, and one 8-channel 12-bit, 1MSPS successive approximation ADC module. 32-bit division module, and 3 way comparator module. Undervoltage detection and low voltage reset function.

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Memory Ram Capacity8KB
ConnectivityI²C,SPI,UART/USART
Operating Voltage (Range)2.5V~5.5V
Program Space TypeFLASH
Program Space Capacity32KB
Total Number Of I/O Ports44
Primary Frequency Speed (Max)48MHz
CPU CoreARM Cortex-M0
Package / CaseLQFP48_7X7MM
Installation Type-
Number of Timers / Counters5
ADC Resolution12
Partlife CycleActive
Height1.60mm
Country of OriginChina
Original ManufacturerFoshan Synwit Technology Co., Ltd.
BrandSynwit
Storage Temperature-40~+150℃
Size7.00 x 7.00mm
EEPROM CapacityOriginalKB
PeripheralOriginal
Core Size-
Part StatusActive
Operating Temperature-40°C~105°C
Series23
