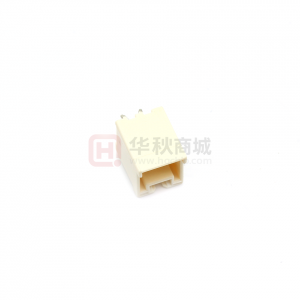

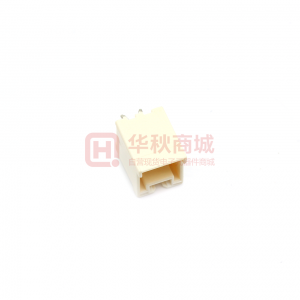

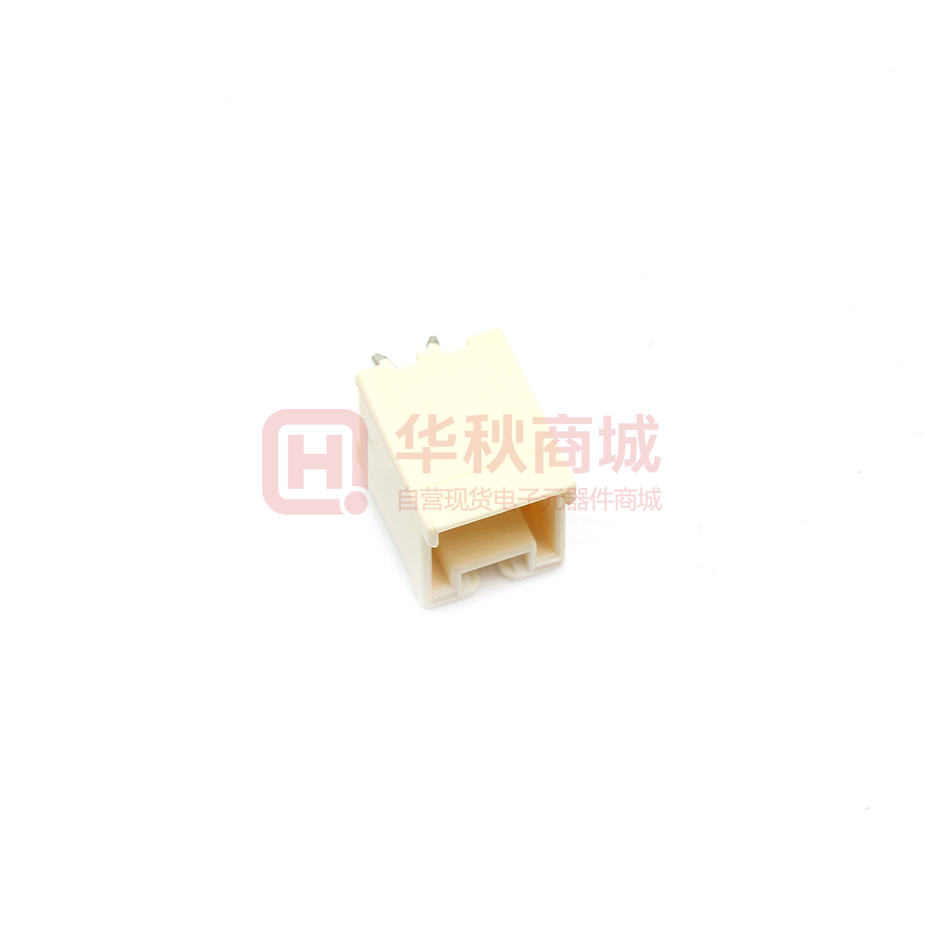

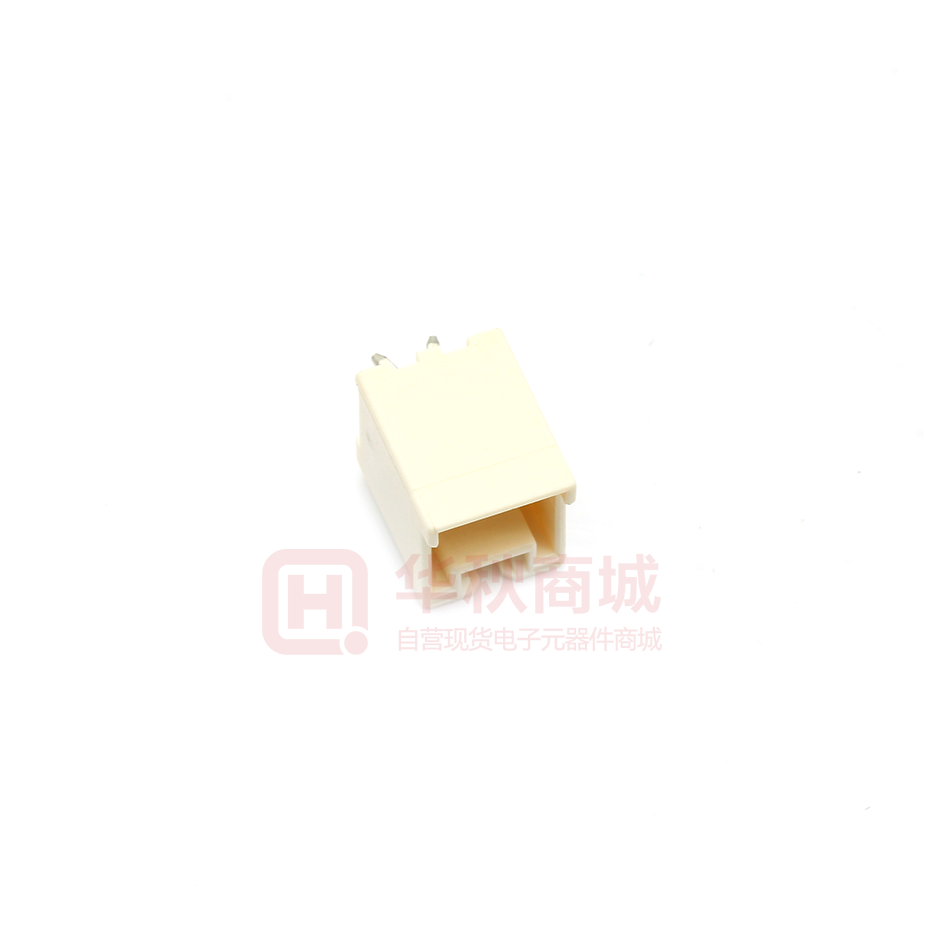

Images are for reference only
Wire to Board Connectors TE 917780-1
- Mfr Part #917780-1
- ManufacturerTE
- HQ Part #CO0199119
- PackageAccessories_7.5X8.2MM_TM
- Lead Time Ship immediately
DescriptionLine to plate 2Pin spacing 2.5mm, 1 row straight plug
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Overall Contact Length | 0.410"（10.41mm） | |
| Contact Length Of Terminal | 0.126"（3.20mm） | |
| Mating Contact Length | 0.185"（4.70mm） | |
| Shield | - | |
| Contact Surface Treatment - Column | - | |
| Matched Line Spacing | - | |
| Joint Stack Height | 13.7mm | |
| Application | General | |
| Insulation Height | 0.386"（9.80mm） | |
| Contact Shape | - | |
| Insulating Material | - | |
| Fastening Type | - | |
| Insulation Color | - | |
| Male And Female | - | |
| Spacing | 2.50mm | |
| Packing | Bag Packing | |
| Intrusion Protection | - | |
| Rated Voltage | 250V | |
| Package / Case | Accessories_7.5X8.2MM_TM | |
| Contact Material | - | |
| Characteristic | - | |
| Rated Current | 3A | |
| Operating Temperature | -30~+105℃ | |
| Flammability Grade Of Materials | UL94V-0 | |
| Contact Coating Thickness | 0.80µm | |
| Contact Coating | - | |
| Termination | Solder | |
| Installation Type | DIP | |
| Contact Type | - | |
| Row Number | 1 | |
| Number of Positions | 2Pin | |
| Connector Type | - | |
| Style | - | |
| Mounting Orientation | Vertical | |
| Contact Plating | Tin | |
| Connector System | Line to board | |
| Partlife Cycle | Active | |
| MPQ | 300pcs | |
| Country of Origin | Switzerland | |
| Size | 7.50 x 8.20mm | |
| Manufacturer | TE Connectivity | |
| Number Of Pins Loaded | - | |
| Height | 11.30mm | |
| Part Status | - | |
| Series | 2.5mm System | |
| Lead Free Or Not | Yes | |
| Moisture Sensitivity Level (Msl) | 1 | |
| Colour | - |
