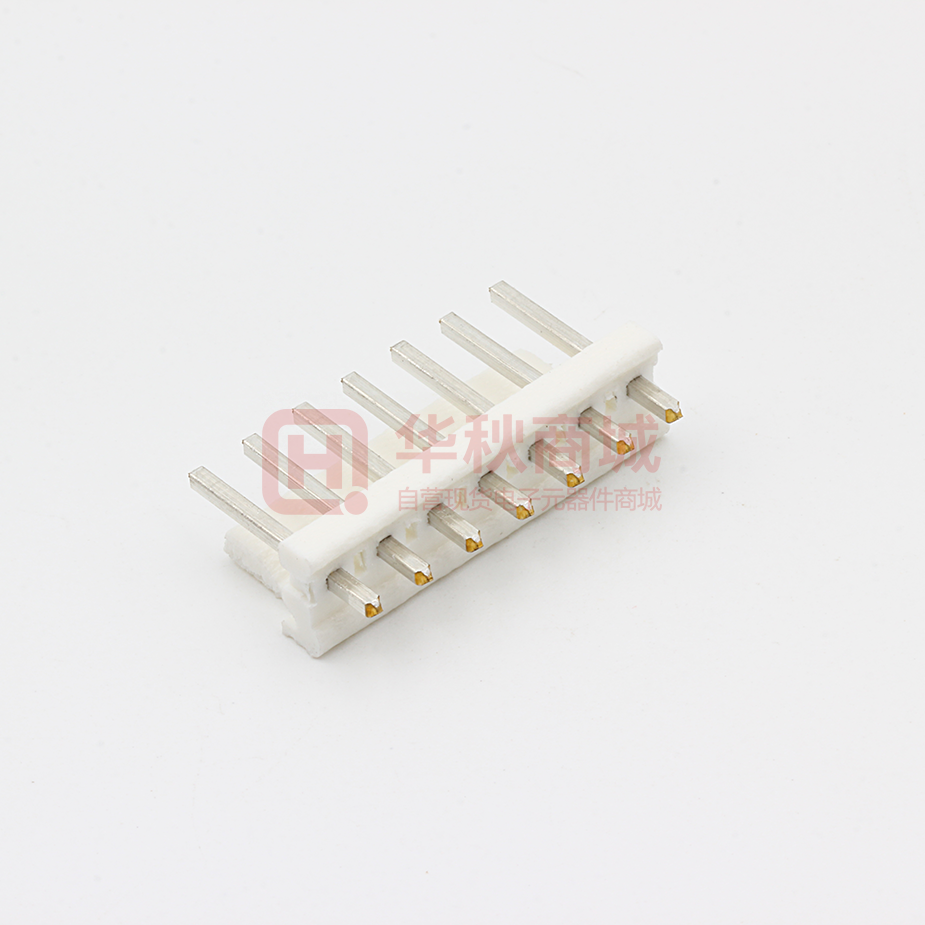

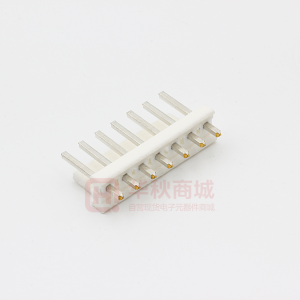

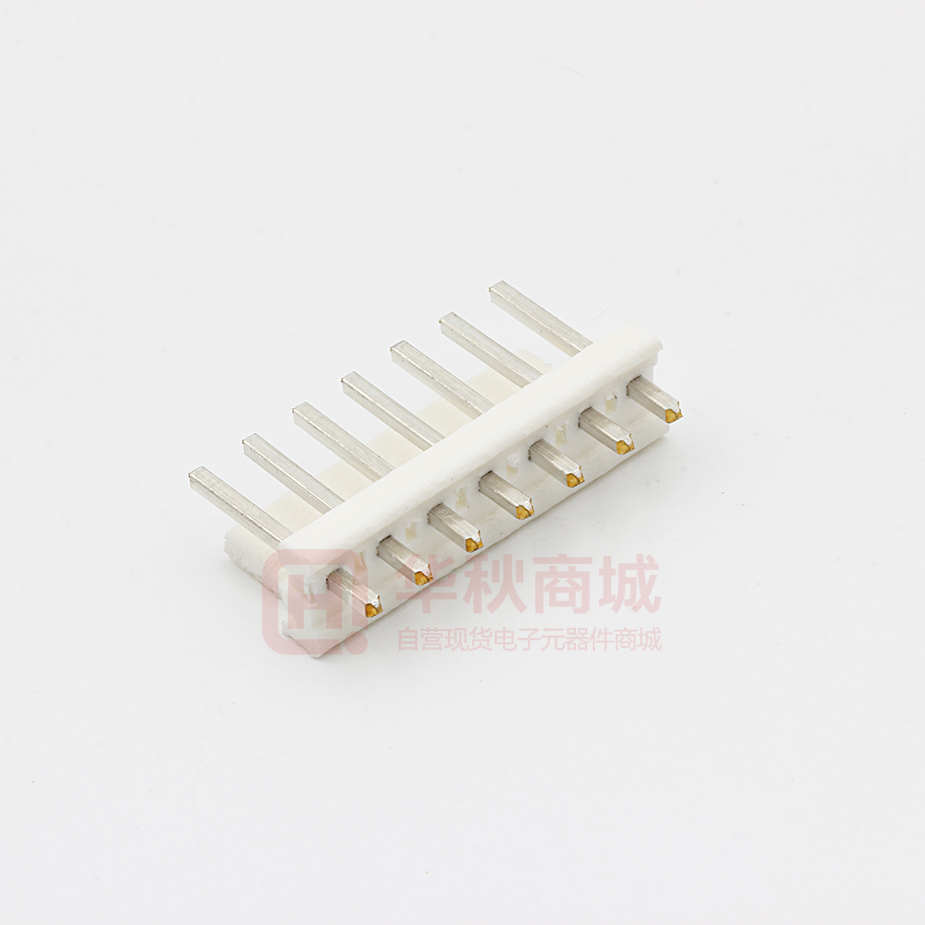

Wire to Board Connectors TE 640445-7
- Mfr Part #640445-7
- ManufacturerTE
- HQ Part #CO0003712
- PackageAccessories_27.74X7.62MM_TM
- Lead Time Ship immediately
DescriptionLine to plate 7Pin spacing 3.96mm, 1 row straight plug
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Overall Contact Length | 0.650"（16.51mm） | |
| Contact Length Of Terminal | 0.125"（3.18mm） | |
| Mating Contact Length | 0.400"（10.16mm） | |
| Shield | - | |
| Contact Surface Treatment - Matching | - | |
| Contact Surface Treatment - Column | - | |
| Matched Line Spacing | - | |
| Application | - | |
| Insulation Height | 0.425"（10.80mm） | |
| Contact Shape | - | |
| Insulating Material | - | |
| Fastening Type | - | |
| Insulation Color | - | |
| Male And Female | - | |
| Height On Board | 13.33mm | |
| Spacing | 3.96mm | |
| Packing | Bulk packing | |
| Intrusion Protection | - | |
| Rated Voltage | 600V | |
| Package / Case | Accessories_27.74X7.62MM_TM | |
| Contact Material | - | |
| Characteristic | - | |
| Rated Current | 7A | |
| Operating Temperature | -55~+105℃ | |
| Flammability Grade Of Materials | UL94V-0 | |
| Contact Coating Thickness | 2.54µm | |
| Contact Coating | - | |
| Termination | Solder | |
| Installation Type | DIP | |
| Contact Type | - | |
| Row Number | 1 | |
| Number of Positions | 7Pin | |
| Connector Type | - | |
| Style | - | |
| Mounting Orientation | Vertical | |
| Contact Plating | Tin | |
| Connector System | Line to board | |
| Partlife Cycle | Active | |
| Certification | RoHS | |
| MPQ | 1000pcs | |
| Country of Origin | America | |
| Number Of Stitches | 7 | |
| Size | 27.74 x 7.62mm | |
| Manufacturer | TE Connectivity | |
| Number Of Pins Loaded | - | |
| Number Of Pins | 7Pins | |
| Height | 3.18mm | |
| Part Status | - | |
| Series | MTA-156 | |
| Manufacturer'S Standard Lead Time | - | |
| Lead Free Or Not | Yes | |
| Moisture Sensitivity Level (Msl) | - | |
| Colour | - |
