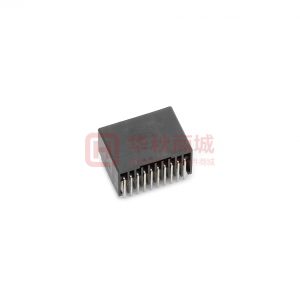

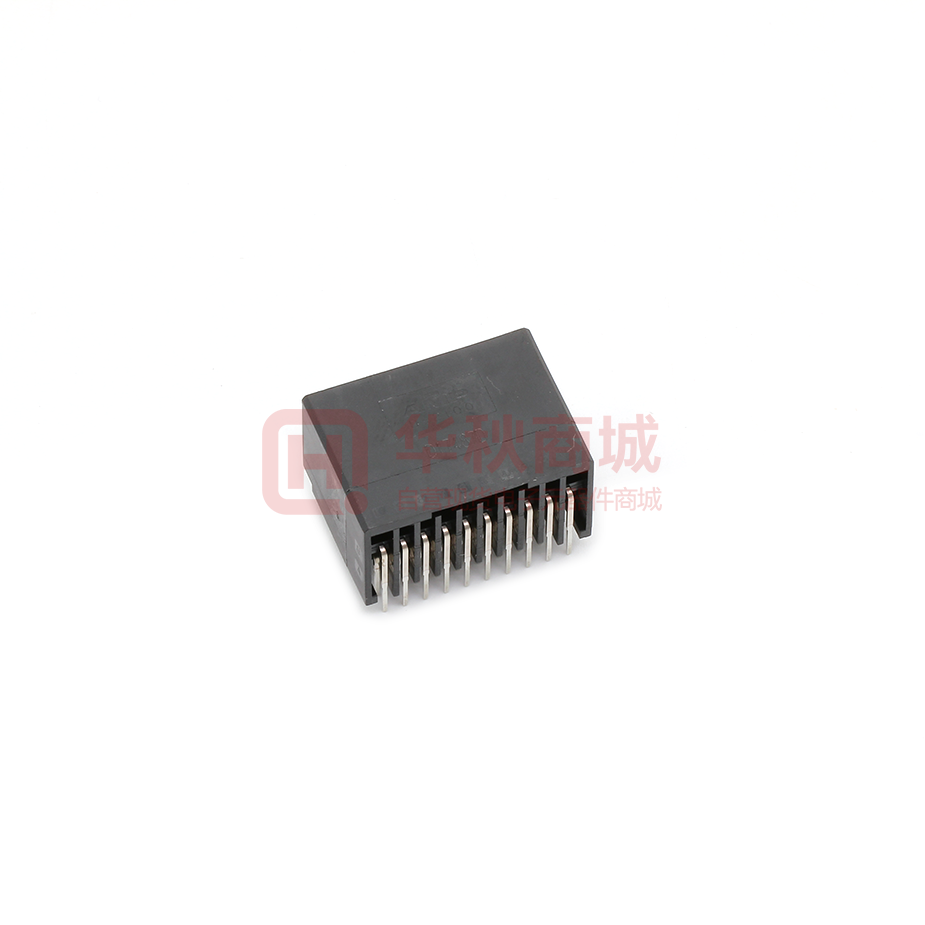

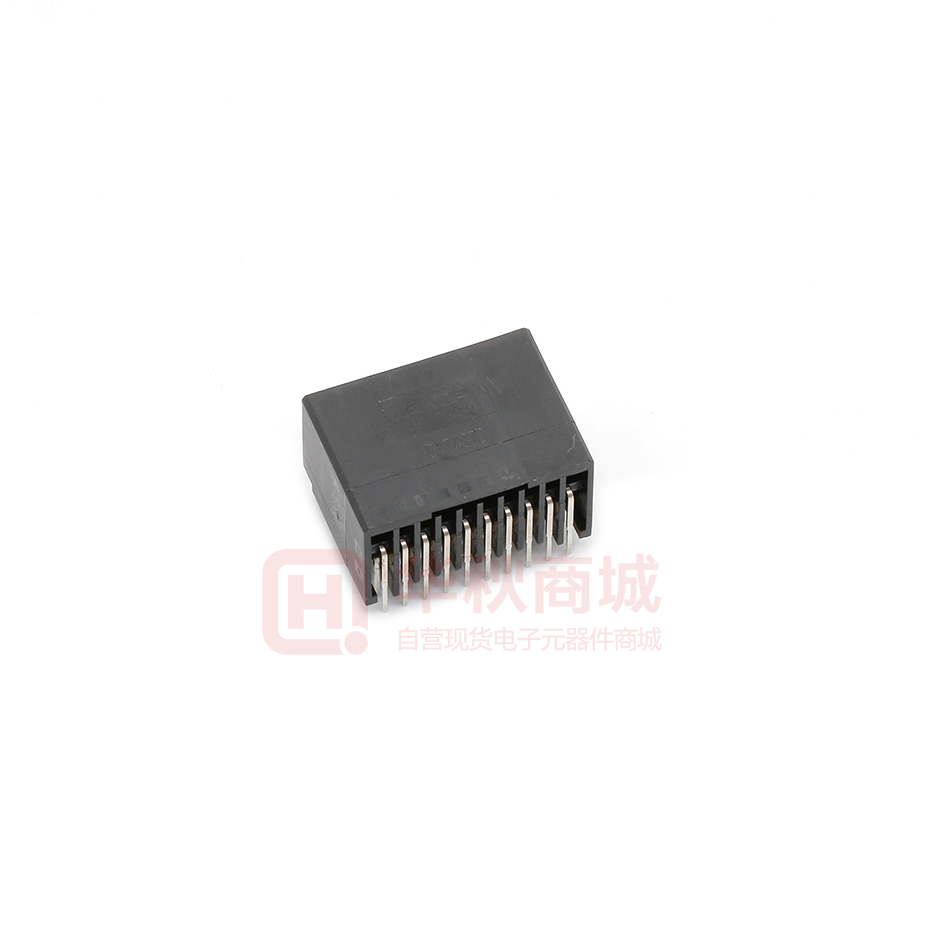

Images are for reference only

Wire to Board Connectors TE 1376137-1

  • Mfr Part #1376137-1
  • ManufacturerTE
  • HQ Part #CO0167720
  • PackageAccessories_27.7X20.2MM_TM
  • Lead Time Ship immediately
  • DescriptionWire to Board Connectors Spacing 2.50mm 20Pin (2x10) bending and inserting

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Contact Length Of Terminal0.134"(3.40mm)
Contact Surface Treatment Thickness - Matching15µin(0.38µm)
Contact Surface Treatment - Column-
Matched Line Spacing-
Insulation Height0.579"(14.70mm)
Contact Shape-
Row Spacing3.75mm
Insulating Material-
Fastening Type-
Insulation Color-
Male And Female-
PackingTube Packing
Intrusion Protection-
Rated Voltage250VAC
Package / CaseAccessories_27.7X20.2MM_TM
Contact Material -
Rated Current5A
Operating Temperature-55~+105℃
Flammability Grade Of MaterialsUL94V-0
Contact Coating Thickness0.38µm
Contact Coating-
Installation TypeBending Insert
Contact Type-
Row Number2
Number of Positions20pin
Connector Type-
Mounting OrientationHorizontal
Contact PlatingGold
Connector SystemLine to board
Storage Temperature-55~+105℃
Country of OriginSwitzerland
Size27.70 x 20.20mm
ManufacturerTE Connectivity
Number Of Pins Loaded-
Number Of Pins20Pins
Part Status-
Lead Free Or NotYes
Moisture Sensitivity Level (Msl)1
