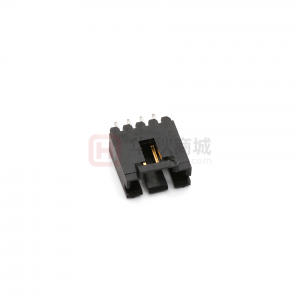

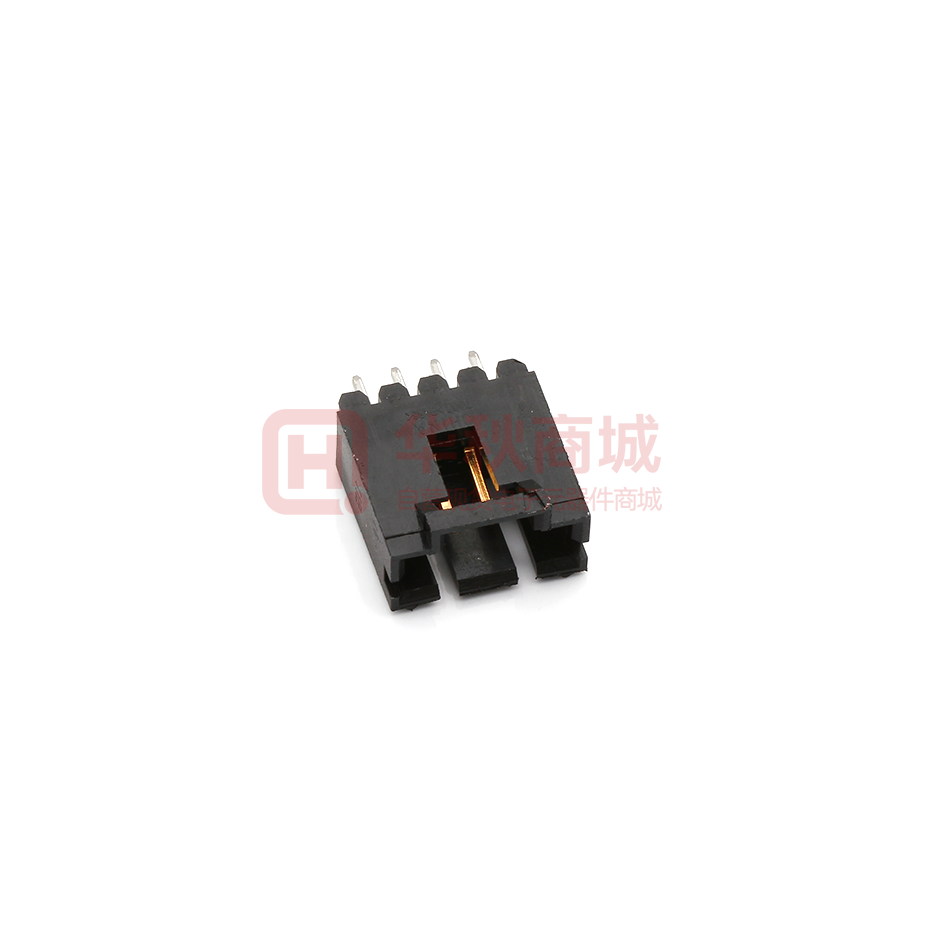

Images are for reference only
Wire to Board Connectors TE 103638-3
- Mfr Part #103638-3
- ManufacturerTE
- HQ Part #CO0142523
- PackageAccessories_12.57X6.98MM_TM
- Lead Time Ship immediately
DescriptionLine to plate 4Pin spacing 2.54mm, 1 row straight plug black
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Contact Length Of Terminal | 0.130"（3.30mm） | |
| Mating Contact Length | 0.230"（5.84mm） | |
| Shield | - | |
| Contact Surface Treatment Thickness - Column | 100µin（2.54µm） | |
| Contact Surface Treatment Thickness - Matching | 15µin（0.38µm） | |
| Contact Surface Treatment - Column | - | |
| Matched Line Spacing | - | |
| Application | - | |
| Insulation Height | 0.535"（13.60mm） | |
| Contact Shape | - | |
| Insulating Material | - | |
| Fastening Type | - | |
| Insulation Color | - | |
| Male And Female | - | |
| Spacing | 2.54mm | |
| Packing | Tube Packing | |
| Intrusion Protection | - | |
| Rated Voltage | - | |
| Package / Case | Accessories_12.57X6.98MM_TM | |
| Contact Material | - | |
| Characteristic | - | |
| Rated Current | 3A | |
| Operating Temperature | -65~+105℃ | |
| Flammability Grade Of Materials | - | |
| Contact Coating Thickness | 0.38µm | |
| Contact Coating | - | |
| Termination | Solder | |
| Installation Type | DIP | |
| Contact Type | - | |
| Row Number | 1 | |
| Number of Positions | 4Pin | |
| Connector Type | - | |
| Style | - | |
| Mounting Orientation | Vertical | |
| Insulation Resistance | 5GΩ | |
| Contact Plating | Gold | |
| Connector System | Line to board | |
| Partlife Cycle | Active | |
| MPQ | 15pcs | |
| Country of Origin | Switzerland | |
| Number Of Stitches | 4 | |
| Size | 12.57 x 6.98mm | |
| Manufacturer | TE Connectivity | |
| Number Of Pins Loaded | - | |
| Height | 13.59mm | |
| Part Status | - | |
| Series | AMPMODU MTE | |
| Manufacturer'S Standard Lead Time | - | |
| Lead Free Or Not | - | |
| Moisture Sensitivity Level (Msl) | - | |
| Colour | - |
