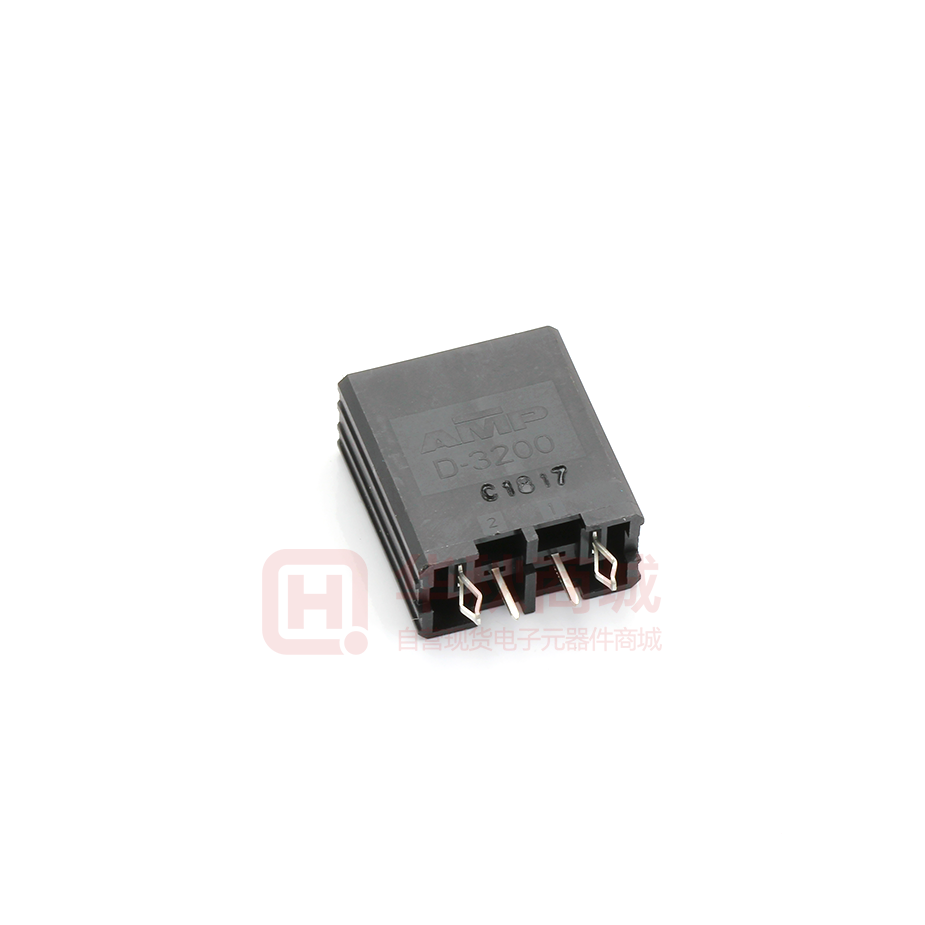

Wire to Board Connectors TE 1-917337-2

  • Mfr Part #1-917337-2
  • ManufacturerTE
  • HQ Part #CO0130296
  • PackageAccessories_19.1X9.4MM_TM
  • Lead Time Ship immediately
  • DescriptionLine to plate 2Pin spacing 5.08mm, 1 row straight plug

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Contact Length Of Terminal0.150"(3.81mm)
Contact Surface Treatment Thickness - Matching15µin(0.38µm)
Contact Surface Treatment - Column-
Matched Line Spacing-
Joint Stack Height31.00mm~32.50mm
Insulation Height0.850"(21.59mm)
Contact Shape-
Insulating Material-
Fastening Type-
Insulation Color-
Male And Female-
PackingBulk packing
Intrusion Protection-
Rated Voltage600V
Package / CaseAccessories_19.1X9.4MM_TM
Contact Material -
Rated Current15A
Operating Temperature-55~+105℃
Flammability Grade Of MaterialsUL94V-0
Contact Coating Thickness0.38µm
Contact Coating-
Installation TypeDIP
Contact Type-
Row Number1
Number of Positions2Pin
Connector Type-
Mounting OrientationVertical
Contact PlatingGold
Connector SystemLine to board
Number Of Stitches2
Size19.08 x 9.35mm
ManufacturerTE Connectivity
Number Of Pins Loaded-
Part Status-
Manufacturer'S Standard Lead Time-
Lead Free Or NotYes
Moisture Sensitivity Level (Msl)-
