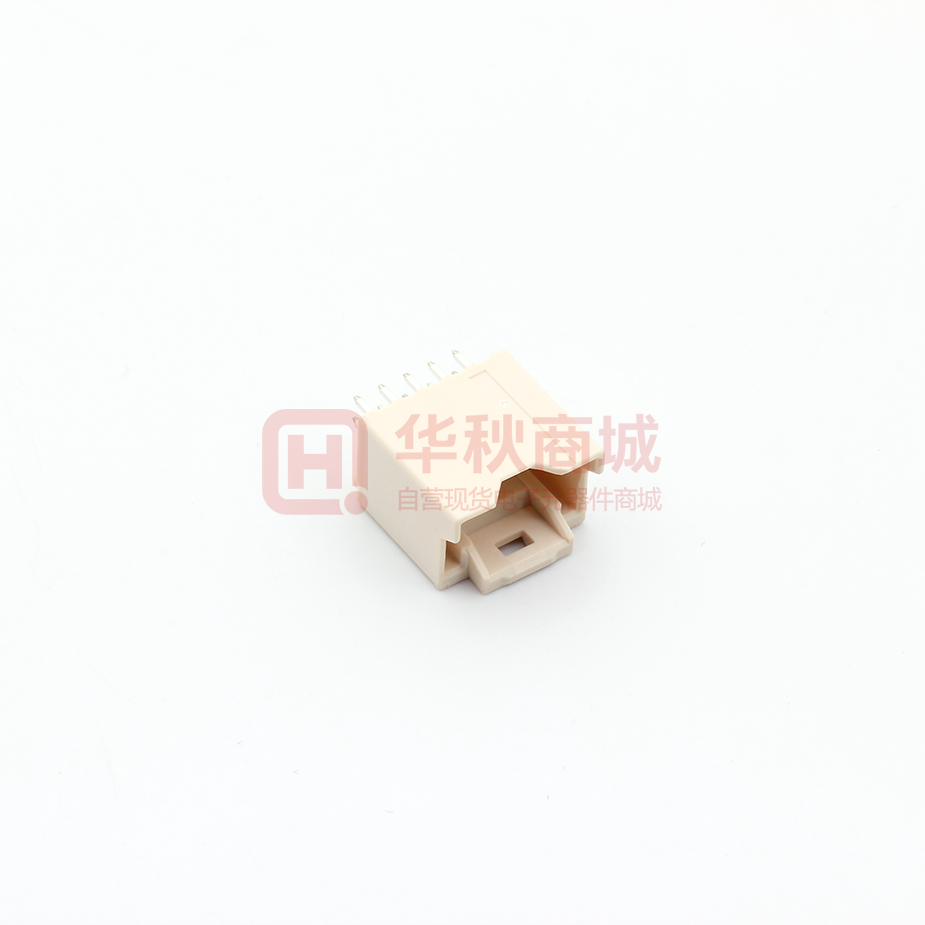

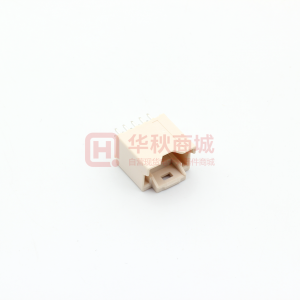

Images are for reference only
5016451020
- Mfr Part #5016451020
- ManufacturerMolex
- HQ Part #CO0002555
- Package插件,P=2mm
- Lead Time Ship immediately
DescriptionWire to Board Connectors 2x5P Direct Insertion P:2mm
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Matched Line Spacing | 2.00mm | |
| Insulation Height | 0.472"（12.00mm） | |
| Row Spacing | 2.00mm | |
| Insulating Material | Polyamide(PA66),Nylon 66,Glass Fiber Reinforced | |
| Fastening Type | - | |
| Insulation Color | - | |
| Spacing | 2.00mm | |
| Intrusion Protection | - | |
| Rated Voltage | 250V | |
| Package / Case | DIP,P=2mm | |
| Contact Material | Brass | |
| Characteristic | Board guide rail | |
| Rated Current | 2A | |
| Operating Temperature | -40℃~+105℃ | |
| Flammability Grade Of Materials | UL94V-0 | |
| Contact Coating Thickness | - | |
| Contact Coating | Tin | |
| Termination | Welding | |
| Installation Type | Direct Insertion | |
| Contact Type | Male Pin | |
| Number of Rows | Double row | |
| Number of Positions | 10Pin | |
| Connector Type | Joint | |
| Style | Board to cable/wire | |
| Pin Structure | 2x5P | |
| Partlife Cycle | Active | |
| Size | - | |
| Number Of Pins Loaded | - | |
| Number Of Pins Per Row | 5 | |
| Height | 12.00mm | |
| Part Status | Active | |
| Series | iGrid™501645 | |
| Lead Free Or Not | Yes | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
