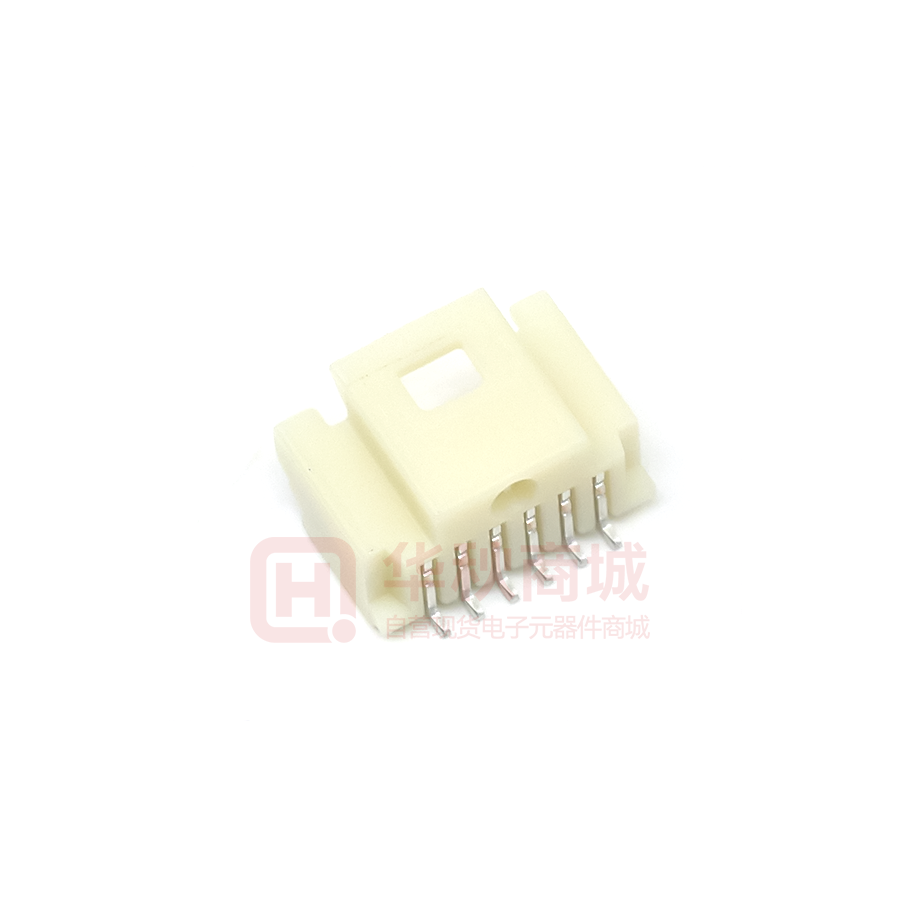

Images are for reference only
5015680607
- Mfr Part #5015680607
- ManufacturerMolex
- HQ Part #CO0002487
- PackageSMD,P=1mm,卧贴
- Lead Time Ship immediately
DescriptionWire to Board Connectors 1x6P Horizontal Mounting P:1mm
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Insulation Height | 0.185"（4.70mm） | |
| Insulating Material | Polyamide(PA),Nylon | |
| Fastening Type | - | |
| Insulation Color | - | |
| Spacing | 1.00mm | |
| Rated Voltage | 100V | |
| Package / Case | SMD, P=1mm,Horizontal Patch | |
| Contact Material | Phosphor Bronze | |
| Characteristic | Fixed welding tail | |
| Rated Current | 1A | |
| Operating Temperature | -40℃~+105℃ | |
| Flammability Grade Of Materials | UL94V-0 | |
| Contact Coating | Tin | |
| Termination | Welding | |
| Installation Type | Horizontal Mounting | |
| Contact Type | Male Pin | |
| Number of Rows | Single row | |
| Number of Positions | 6Pin | |
| Connector Type | Joint | |
| Style | Board to cable/wire | |
| Pin Structure | 1x6P | |
| Size | - | |
| Number Of Pins Loaded | - | |
| Number Of Pins Per Row | 6 | |
| Height | - | |
| Part Status | Active | |
| Series | Pico-Clasp™501568 | |
| Lead Free Or Not | - | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
