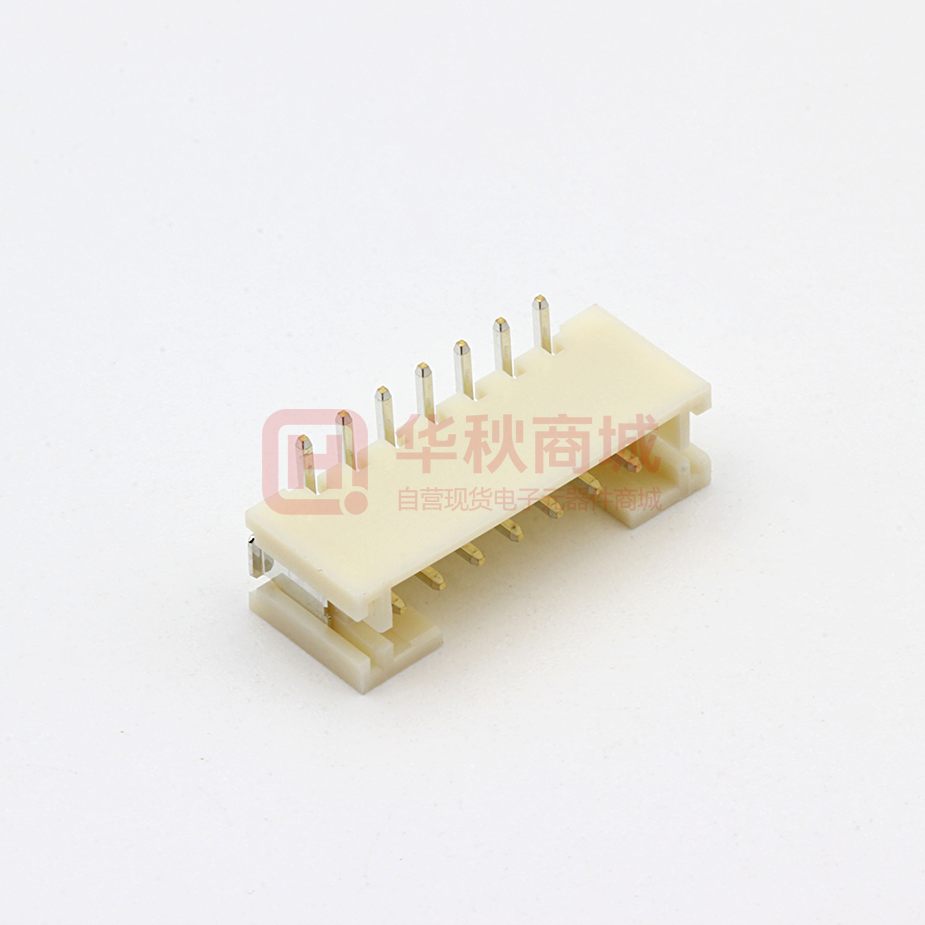

Images are for reference only

B7B-PH-SM4-TB(LF)(SN)

  • Mfr Part #B7B-PH-SM4-TB(LF)(SN)
  • ManufacturerJST
  • HQ Part #CO0002446
  • PackageAccessories_17.95X5MM_SM
  • Lead Time Ship immediately
  • DescriptionLine to plate PH spacing 2.00mm 7Pin vertical copper alloy

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Matched Line Spacing-
ApplicationConsumer,
Male And Female-
Spacing2.00mm
Intrusion Protection-
Rated Voltage100V
Package / CaseAccessories_17.95X5MM_SM
Contact Material -
Characteristic-
Rated Current2A
Flammability Grade Of MaterialsUL94V-0
Contact Coating Thickness-
Contact Coating-
TerminationSolder
Installation TypeSMT
Contact Type-
Number of Rows1
Number of Positions7Pin
Connector Type-
Style-
Insulation Resistance1GΩ
Application LevelConsumer
Partlife CycleActive
Storage Temperature-25~+85℃
CertificationRoHS
Country of OriginAmerica
Size17.95 x 5.00mm
ManufacturerJST Sales America Inc.
Height6.60mm
Part Status-
SeriesPH
Manufacturer'S Standard Lead Time-
Lead Free Or NotYes
Moisture Sensitivity Level (MSL)-
ColourIvory
