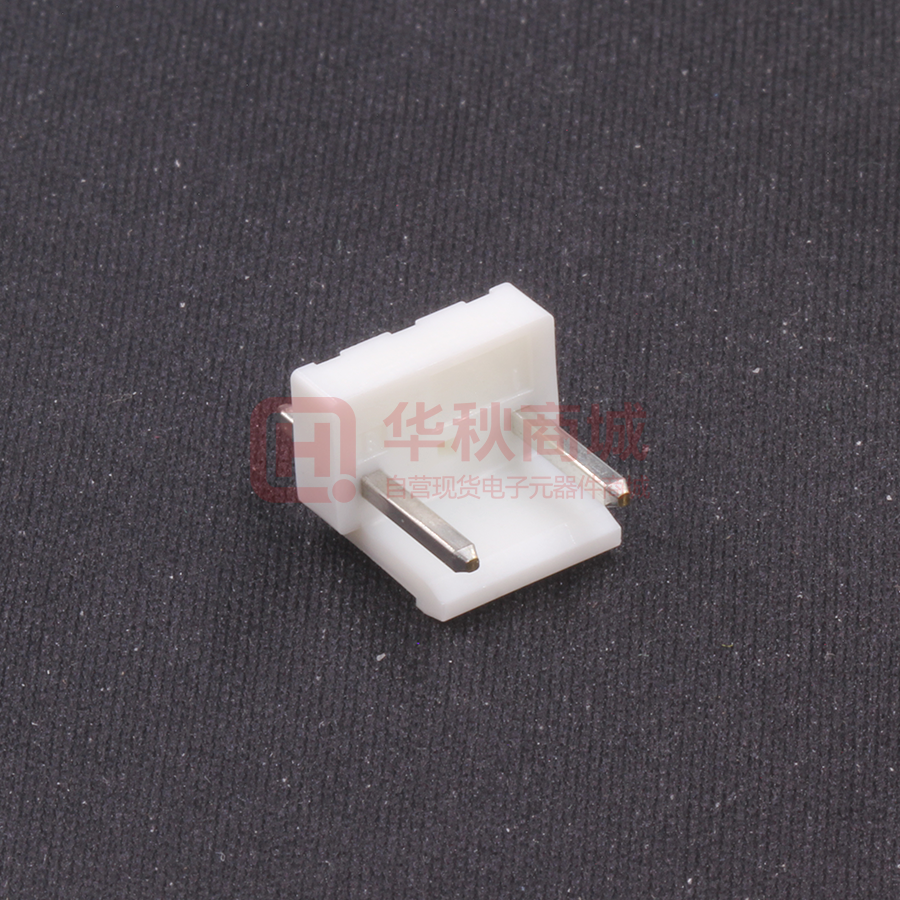

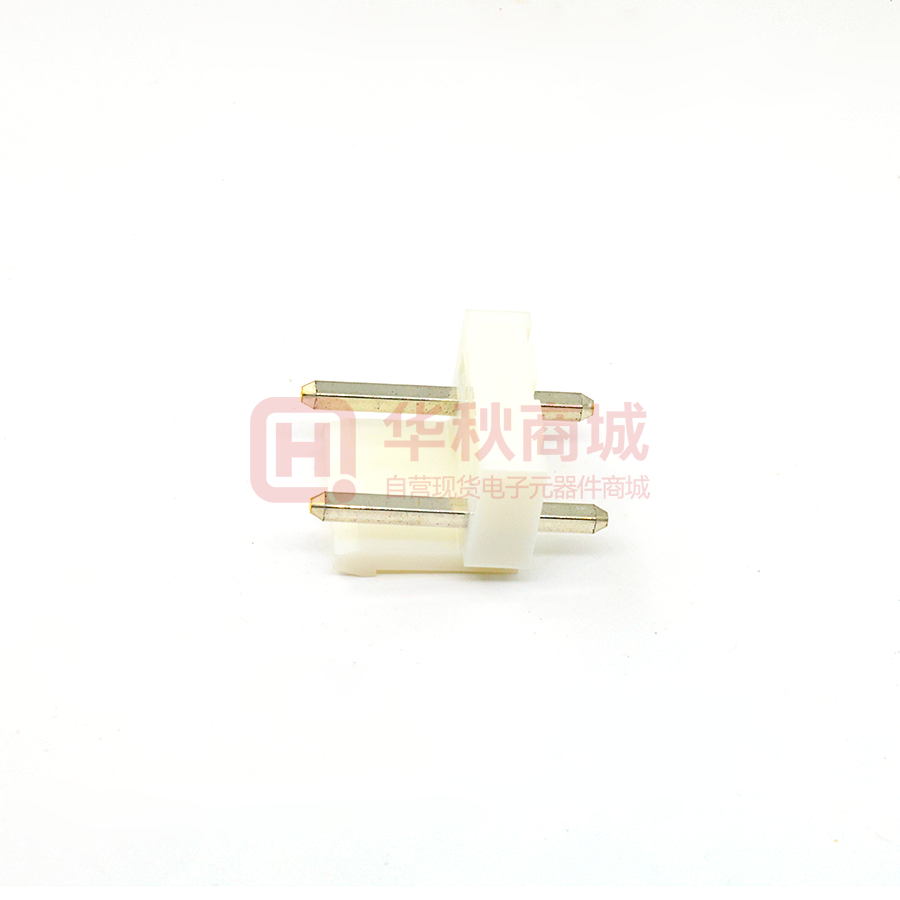

Images are for reference only
B2P3-VH(LF)(SN)
- Mfr Part #B2P3-VH(LF)(SN)
- ManufacturerJST
- HQ Part #CO0003447
- Package插件,P=7.92mm
- Lead Time Ship immediately
DescriptionWire to board connector 2Pin(1x2) P=7.92mm direct insertion
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Wire Gauge Or Range - Awg | 18-20AWG | |
| Male And Female | Male | |
| Spacing | 7.92mm | |
| Rated Voltage | 250V | |
| Package / Case | DIP,P=7.92mm | |
| Contact Material | Brass | |
| Rated Current | 7A | |
| Operating Temperature | -25℃~+85℃ | |
| Flammability Grade Of Materials | UL94V-0 | |
| Contact Coating | Tin | |
| Termination | Solder | |
| Installation Type | Direct Insertion | |
| Contact Type | Male Pin | |
| Number of Rows | Single row | |
| Number of Positions | 2Pin | |
| Connector Type | Joint | |
| Style | Board to cable/wire | |
| Pin Structure | 1x2P | |
| Mounting Orientation | Down | |
| Mounting Angle | Through Hole | |
| Insulation Resistance | 1000MΩ | |
| Connector System | Line to board | |
| Contact Resistance | 20mΩ | |
| Size | 11.82 x 8.50mm | |
| Number Of Pins Per Row | 3 | |
| Height | 9.40mm | |
| Series | VA | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Colour | Natural |
