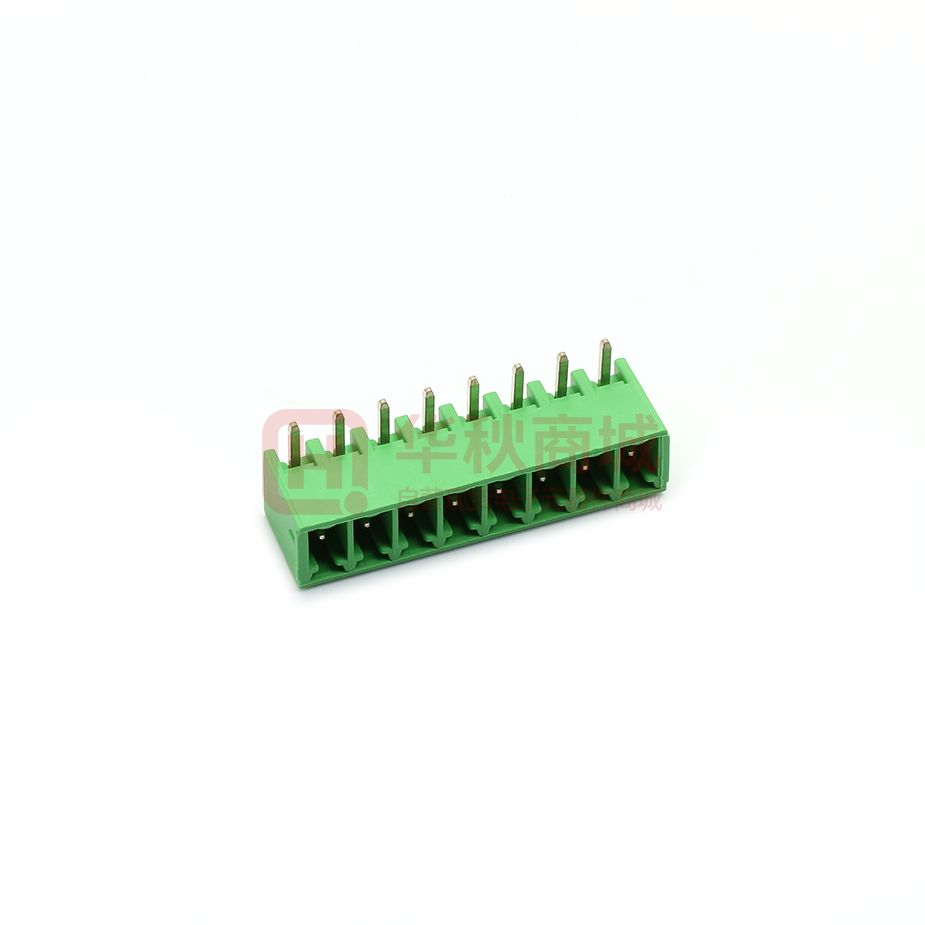

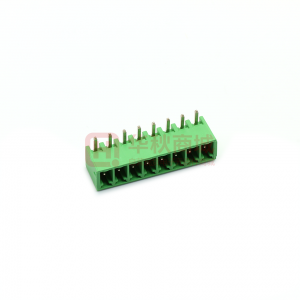

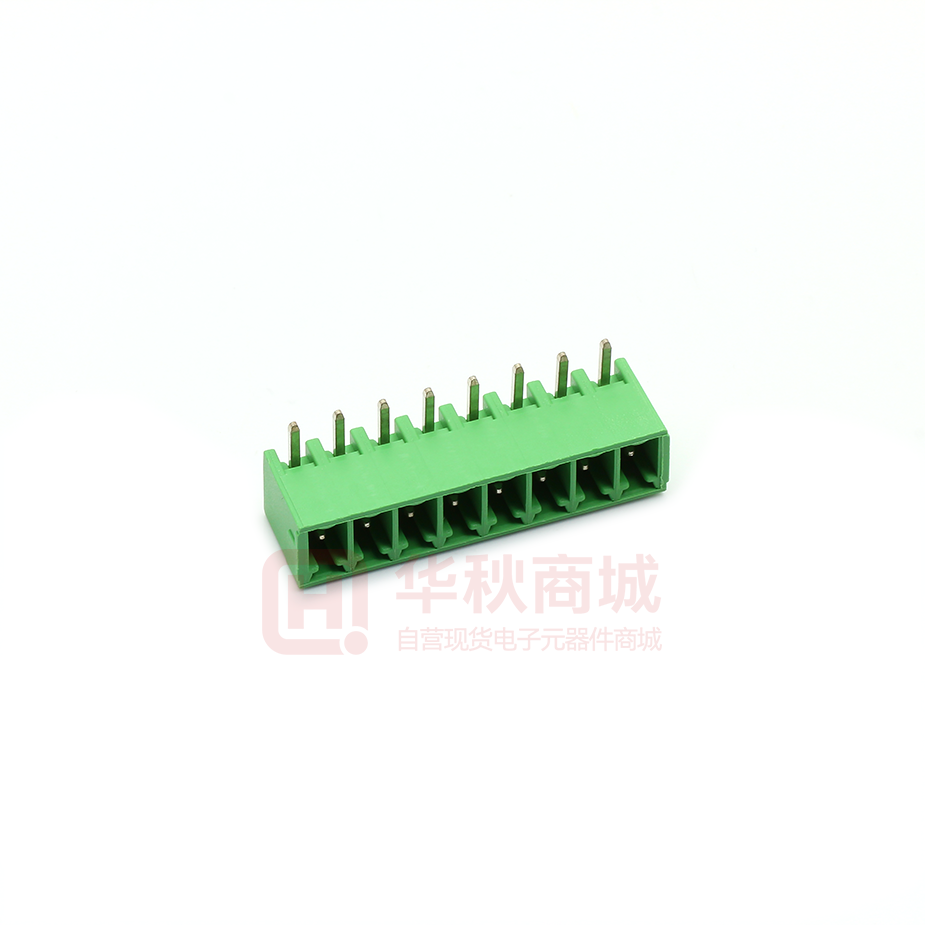

Images are for reference only
1803332
- Mfr Part #1803332
- ManufacturerPhoenix
- HQ Part #CO0038645
- Package弯插,P=3.81mm
- Lead Time Ship immediately
DescriptionTerminal P=3.81mm 1x8P Bending Insert
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Application | Consumer | |
| Insulation Height | 0.285"（7.25mm） | |
| Current - Ul | 8A | |
| Current Iec | 8A | |
| Terminal Type | Welding Piece | |
| Wire Gauge Or Range - Mm ² | - | |
| Wire Gauge Or Range - Awg | - | |
| Type | Connector,Male Pin,With Cover(4 Sides) | |
| Male And Female | Male | |
| Spacing | 3.81mm | |
| Housing Material | Polybutylene terephthalate(PBT) | |
| Rated Voltage | 160V | |
| Package / Case | Bend Insert,P=3.81mm | |
| Contact Material | - | |
| Characteristic | - | |
| Rated Current | 8A | |
| Operating Temperature | -40℃~+100℃ | |
| Flammability Grade Of Materials | UL94V-0 | |
| Contact Coating | Tin | |
| Termination | Solder | |
| Installation Type | Bending Insert | |
| Number of Rows | Single row | |
| Number of Positions | 8Pin | |
| Connector Type | Pluggable Terminal Blocks | |
| Pin Structure | 1x8P | |
| Application Level | Consumer | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+70℃ | |
| Number Of Circuits | 8 | |
| Size | 9.20 x 31.87mm | |
| Voltage - Ul | 300V | |
| Voltage Iec | 160V | |
| Number Of Pins Per Row | 8 | |
| Height | 7.25mm | |
| Number Of Ports | - | |
| Part Status | Active | |
| Series | MC 1,5 | |
| Lead Free Or Not | Yes | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Colour | Green |
