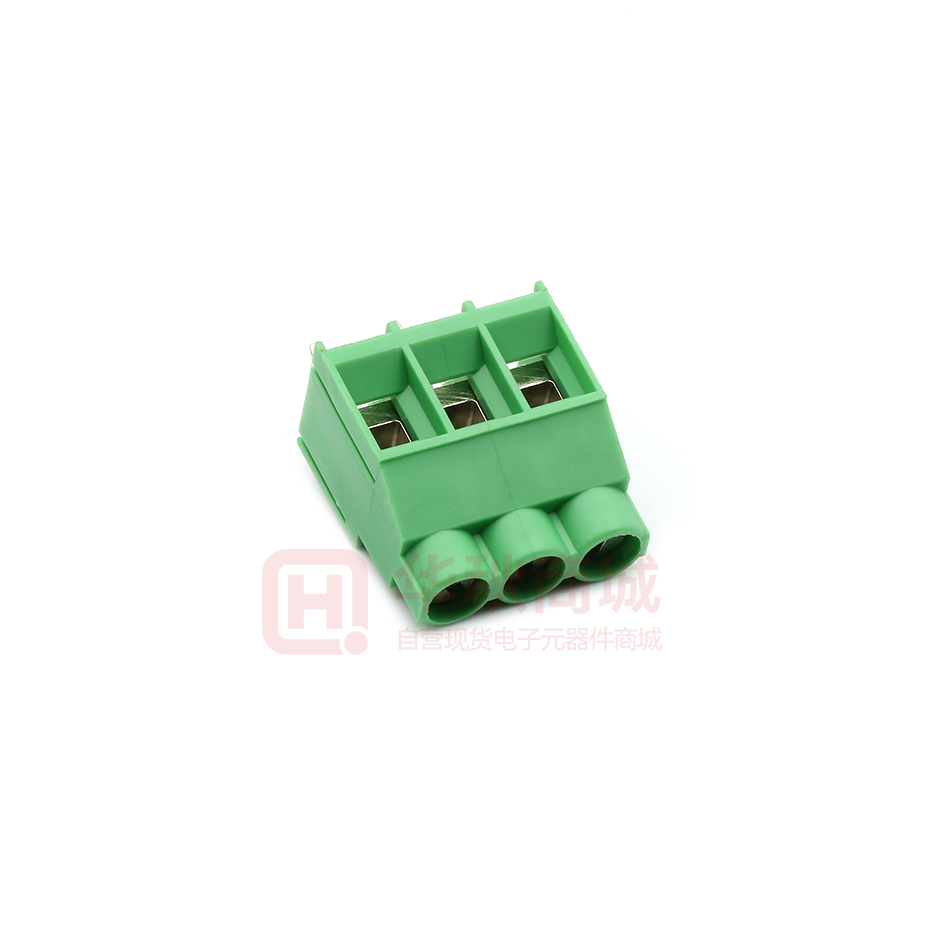

Images are for reference only
1714968
- Mfr Part #1714968
- ManufacturerPhoenix
- HQ Part #CO0419051
- Package插件,P=6.35mm
- Lead Time Ship immediately
DescriptionTerminal Blocks 1x3P 6.35mm Direct Insertion Number of Rows:1 Number of PINs Per Row:3
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Application | Industrial | |
| Thread | M3 | |
| Wire Termination | Screw-Lift Cage Clamp | |
| Screw Torque | 0.5-0.6Nm（4.4-5.3Lb-In） | |
| Current - Ul | 10A | |
| Current Iec | 32A | |
| Terminal Type | Screw | |
| Wire Gauge Or Range - Mm ² | 0.2~4 | |
| Wire Gauge Or Range - Awg | 10~30AWG | |
| Type | - | |
| Spacing | 6.35mm | |
| Housing Material | Polyamide(PA),nylon | |
| Packing | Box Packing | |
| Rated Voltage | 500V | |
| Package / Case | DIP,P=6.35mm | |
| Contact Material | - | |
| Characteristic | - | |
| Rated Current | 32A | |
| Operating Temperature | -40℃~+100℃ | |
| Contact Coating Thickness | 4.00µm | |
| Contact Coating | Tin | |
| Termination | PCB | |
| Installation Type | Direct Insertion | |
| Number of Rows | Single row | |
| Number of Positions | 3Pin | |
| Style | 1x3P | |
| Pin Structure | 1x3P | |
| Mounting Orientation | Vertical | |
| Application Level | Industrial | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+70℃ | |
| Certification | - | |
| MPQ | 50pcs | |
| Country of Origin | Germany | |
| Size | 12.50 x 19.05mm | |
| Manufacturer | Phoenix Contact GmbH & Co. KG | |
| Mating Direction | - | |
| Voltage - Ul | 300V | |
| Voltage Iec | 630V | |
| Number Of Levels | 1 | |
| Number Of Pins Per Row | 3 | |
| Height | 21.50mm | |
| Number Of Ports | - | |
| Part Status | Active | |
| Series | MKDS 5 | |
| Manufacturer'S Standard Lead Time | - | |
| Lead Free Or Not | Yes | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Colour | Green |
