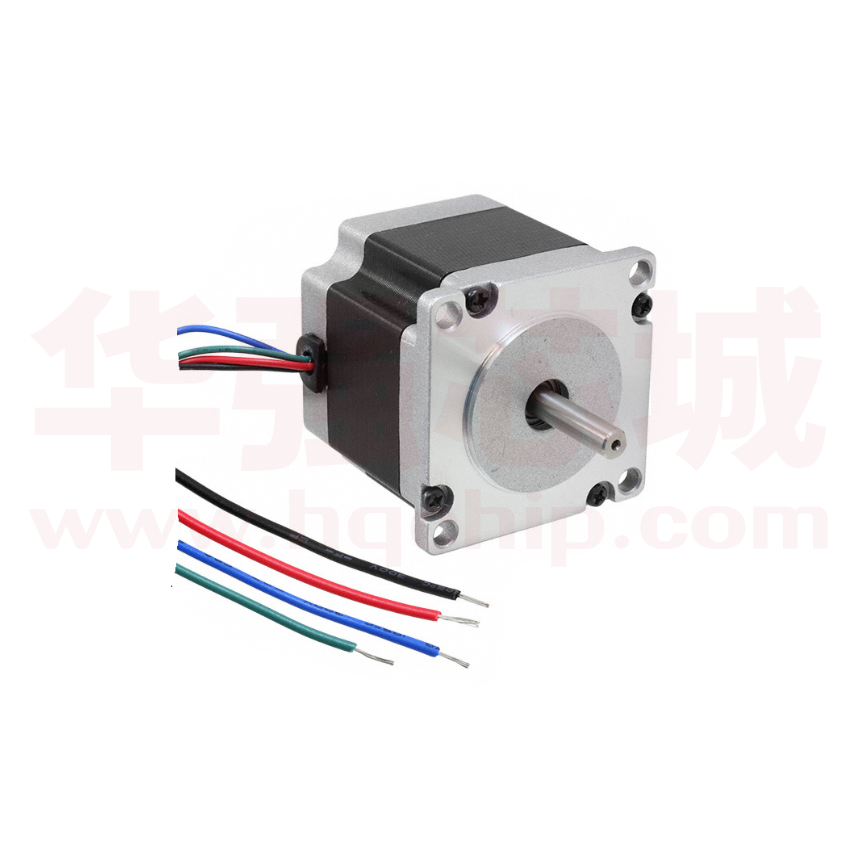

Images are for reference only
QSH5718-51-28-101
- Mfr Part #QSH5718-51-28-101
- ManufacturerTrinamic
- HQ Part #MO0000057
- PackageMOTOR_56.4X56.4MM
- Lead Time Ship immediately
DescriptionQMot Stepper Motor, 57mm, 1.01Nm, 2.8A, 51mm length
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Rated Voltage | 2.3VDC | |
| Package / Case | MOTOR_56.4X56.4MM | |
| Installation Type | Chassis Mount | |
| Coil Resistance | 830mΩ | |
| Step Angle | 1.8° | |
| Shaft Length | 24.00mm | |
| Minimum Holding Torque | 1.01N-m | |
| Partlife Cycle | Active | |
| Application Level | Consumer | |
| Storage Temperature | -20~+50℃ | |
| Height | 51.00mm | |
| Country of Origin | Germany | |
| Original Manufacturer | TRINAMIC Motion Control GmbH & Co. KG | |
| Application | Consumer | |
| Part Status | Active | |
| Lead Free Or Not | Yes | |
| Rotor Inertia | 120g-cm-sq | |
| Characteristic | Flat axis | |
| Operating Temperature | -20℃~+50℃ | |
| Terminal Type | Wire Leads | |
| Installation Hole Spacing | 47.14mm | |
| Nema Frame Size | 23 | |
| Size | 56.40 x 56.40mm | |
| Torque - Hold (Oz In/Mnm) | 143.5/1010oz-in/mNm | |
| Accuracy | ±5% | |
| Step Angle | 1.8° | |
| Steps Per Revolution | 200 | |
| Rated Current | 2.8A | |
| Type | Mixture | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
