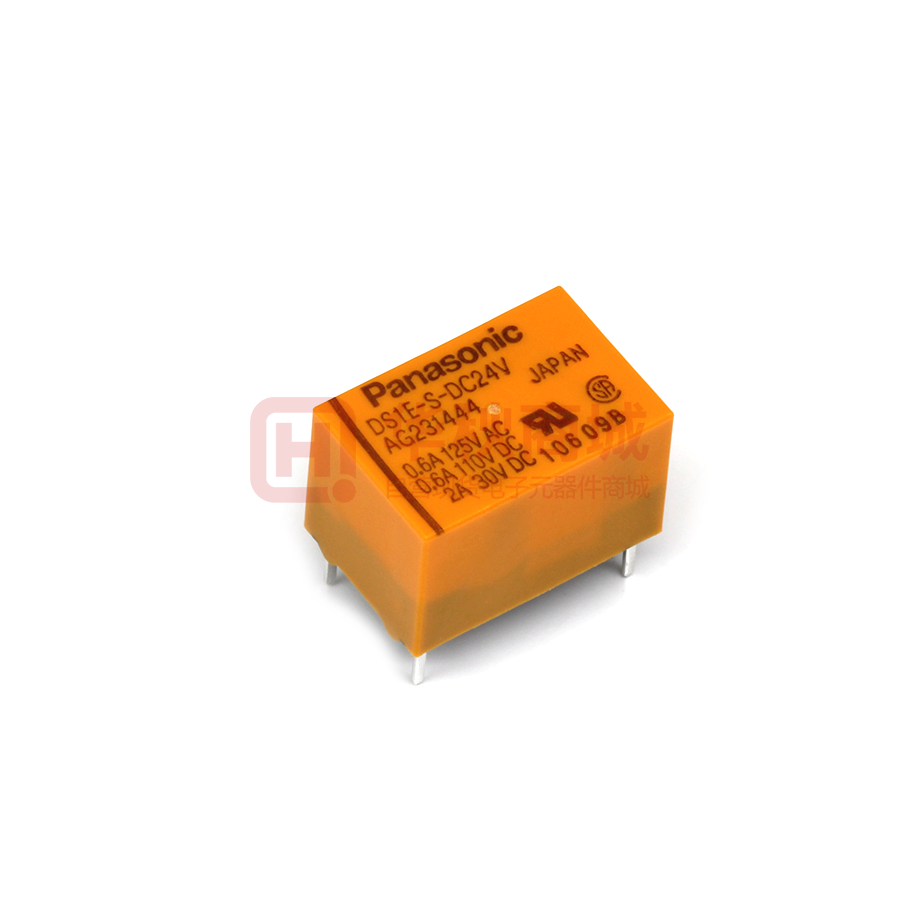

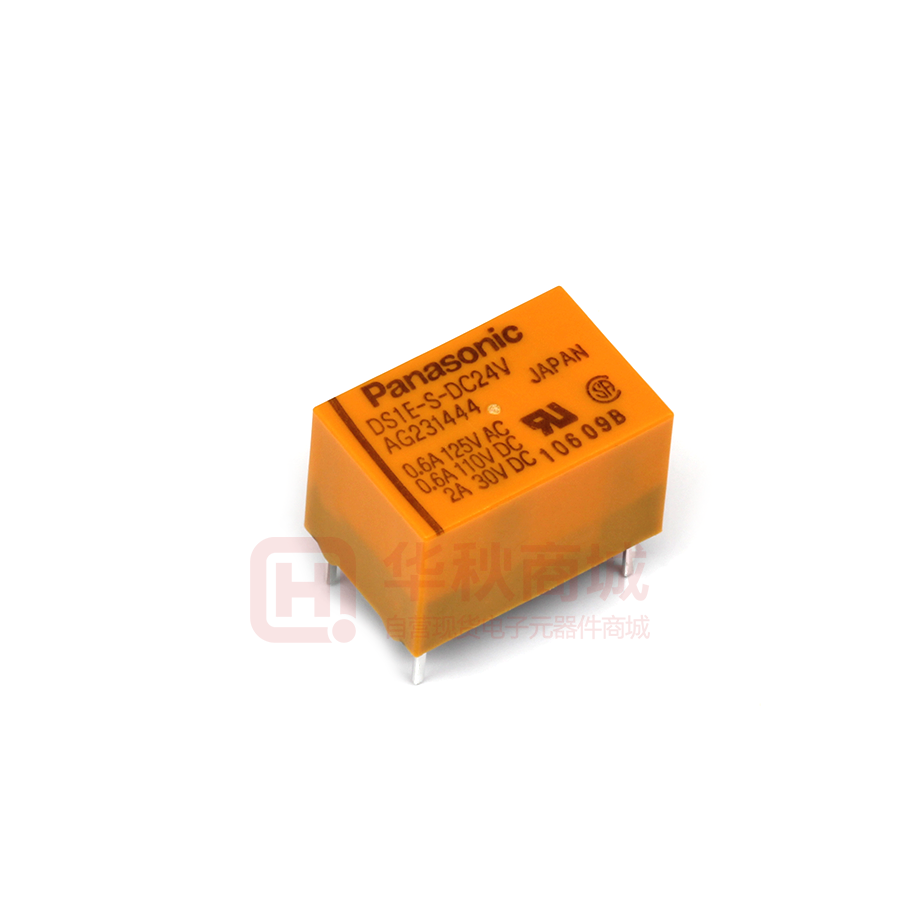

Images are for reference only
DS1E-S-DC24V
- Mfr Part #DS1E-S-DC24V
- ManufacturerPanasonic
- HQ Part #RE0027473
- PackageDIP5
- Lead Time Ship immediately
DescriptionPower Relays ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Switching Voltage | 250VAC，220VDC | |
| Rated Contact Current | 2A | |
| Installation Type | DIP | |
| Contact Form | SPST | |
| L x W/Size | 15.00 x 9.90mm | |
| Application Level | Active | |
| Country of Origin | Japan | |
| Original Manufacturer | Panasonic Corporation | |
| Brand | Panasonic | |
| Voltage - Switch Ac | 220V | |
| Height | 9.90mm | |
| Voltage - Switching Dc | 24V | |
| Part Status | Active | |
| Lead Free Or Not | Yes | |
| Lead Quantity | 5Pin | |
| Package / Case | DIP5 | |
| Coil Resistance | 2.88KΩ | |
| Coil Power | 200mW | |
| Contact Material | Silver（Ag），Gold（Au） | |
| Contact Shape | - | |
| Coil Voltage | 24V | |
| Coil Current | 8.3mA | |
| Moisture Sensitivity Level (MSL) | - |
