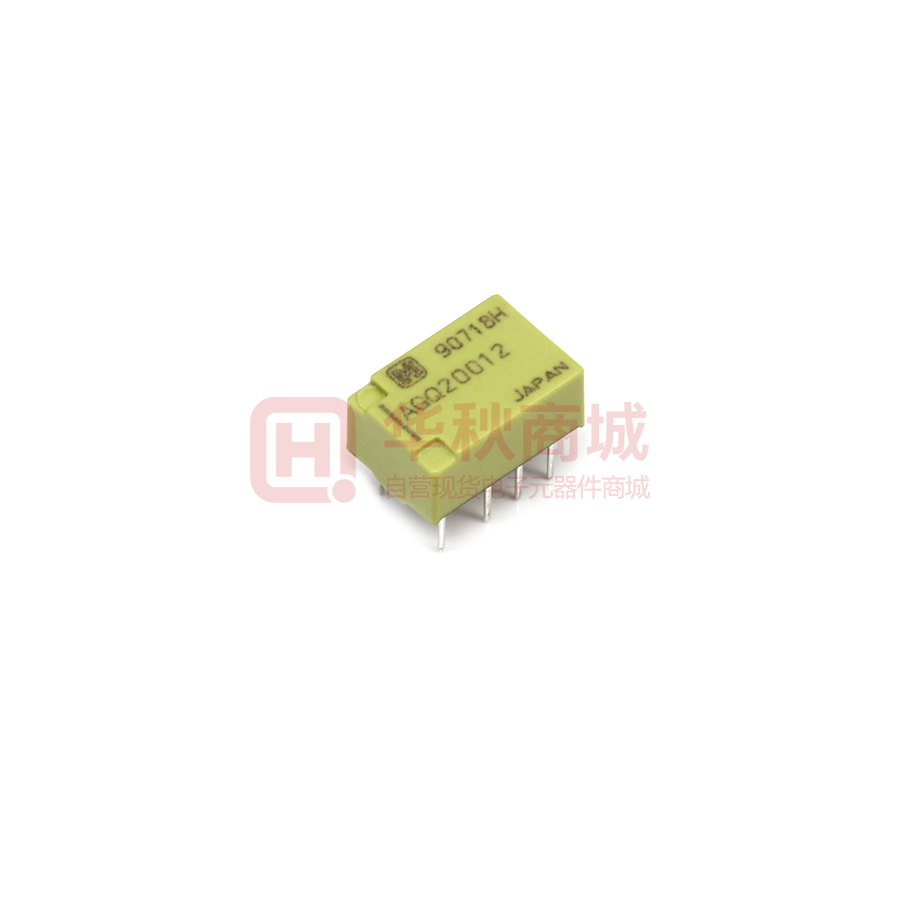

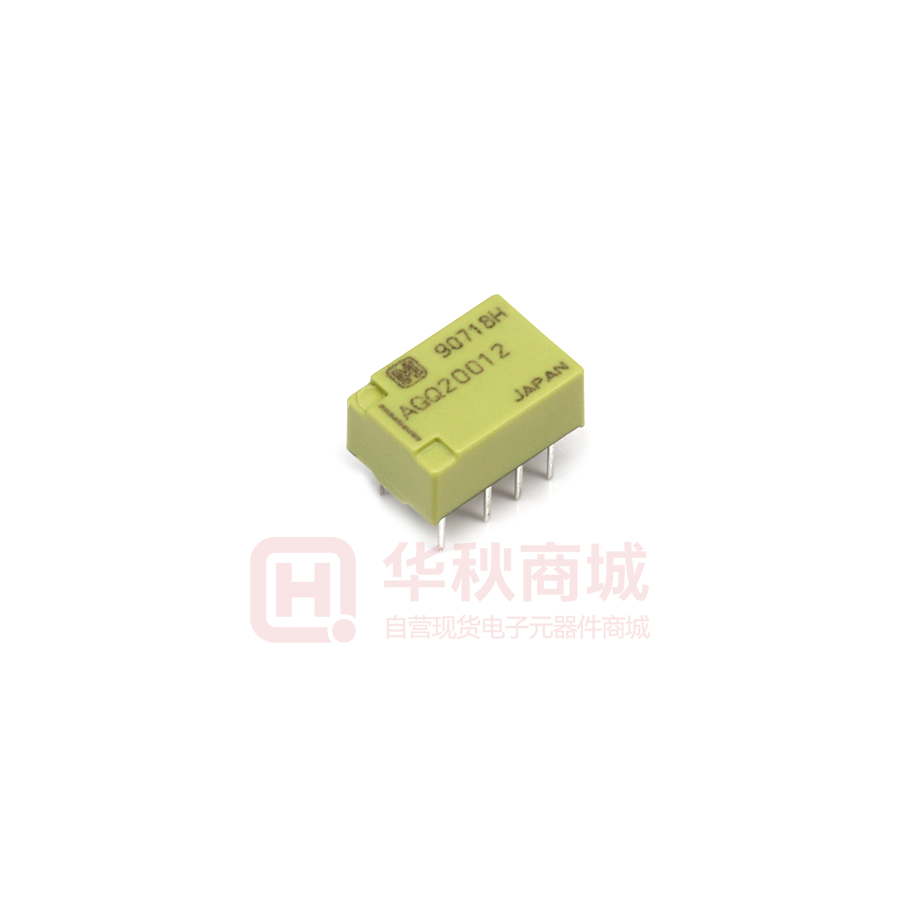

Images are for reference only

AGQ20012

  • Mfr Part #AGQ20012
  • ManufacturerPanasonic
  • HQ Part #RE0027409
  • PackageRELAY_10.6X7.2MM_TM
  • Lead Time Ship immediately
  • DescriptionDIP,7.2x10.6mm Signal Relays ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Switching Voltage125VAC,110VDC
Rated Contact Current2A
Installation TypeDIP
Contact FormDPST
L x W/Size10.60 x 7.20mm
Partlife CycleActive
ApplicationConsumer
CertificationRoHS
Country of OriginJapan
Original ManufacturerPanasonic Corporation
BrandPanasonic
Height5.20cm
Part StatusActive
SeriesAGQ
Lead Free Or NotYes
Lead Quantity8Pin
Package / CaseRELAY_10.6X7.2MM_TM
Coil Resistance1.028KΩ
Coil Power140mW
Contact Material -
Contact Shape-
Coil Voltage12V
Coil Current11.7mA
Moisture Sensitivity Level (MSL)-
