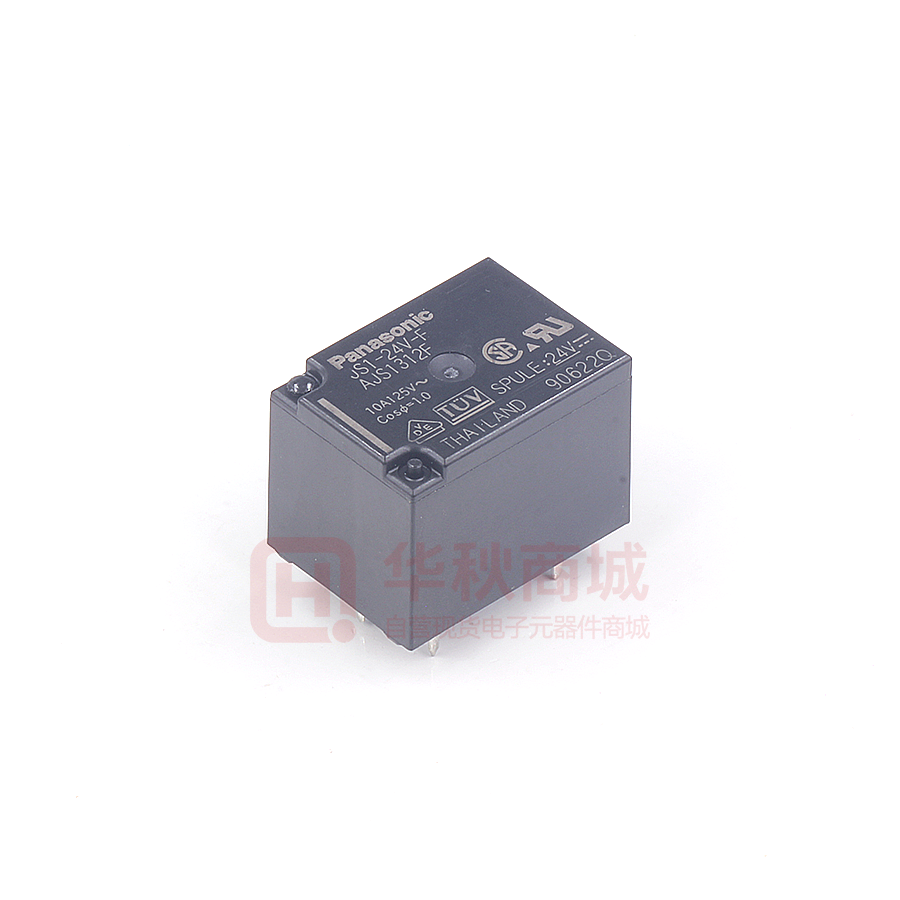

Images are for reference only
JS1-24V-F
- Mfr Part #JS1-24V-F
- ManufacturerPanasonic
- HQ Part #RE0034351
- Package插件,22x16mm
- Lead Time Ship immediately
DescriptionPlugin,16x22mm Power Relays ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Switching Voltage | 250VAC,100VDC | |
| Rated Contact Current | 10A | |
| Installation Type | DIP | |
| Contact Form | SPDT | |
| L x W/Size | 22.00 x 16.00mm | |
| Partlife Cycle | Active | |
| Application Level | Industrial | |
| Storage Temperature | -40~+70℃ | |
| Application | Industrial | |
| Certification | RoHS | |
| Country of Origin | Japan | |
| Original Manufacturer | Panasonic Corporation | |
| Voltage - Switch Ac | 250V | |
| Height | 16.40mm | |
| Voltage - Switching Dc | 100V | |
| Part Status | Active | |
| Series | JS | |
| Lead Free Or Not | Yes | |
| Lead Quantity | 5Pin | |
| Package / Case | DIP,22x16mm | |
| Operating Temperature | -40℃~+70℃ | |
| Coil Resistance | 1.6KΩ | |
| Coil Power | 360mW | |
| Contact Material | Silver Tin Oxide (AgSnO2) | |
| Release Time | 10ms | |
| Working Hours | 10ms | |
| Contact Shape | SPDT(Type 1C) | |
| Coil Voltage | 24V | |
| Coil Current | 15mA | |
| Relay Type | General Purpose | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
