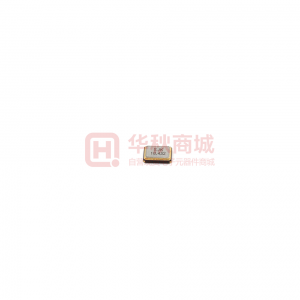

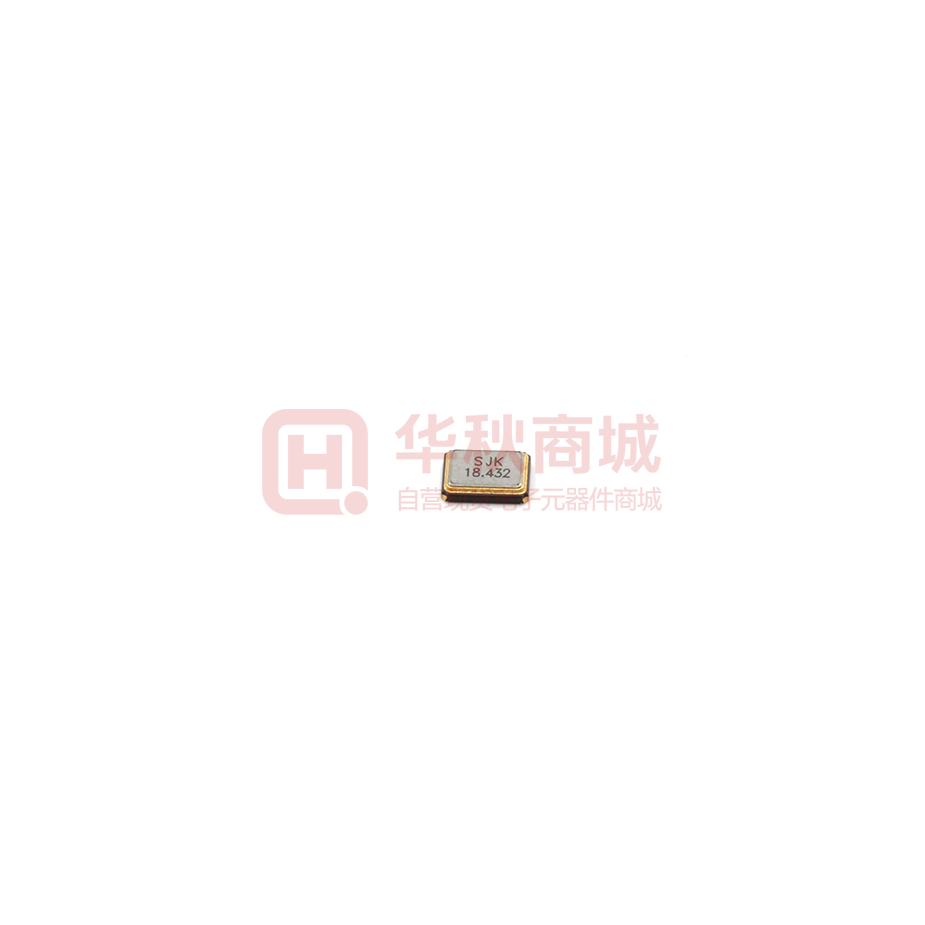

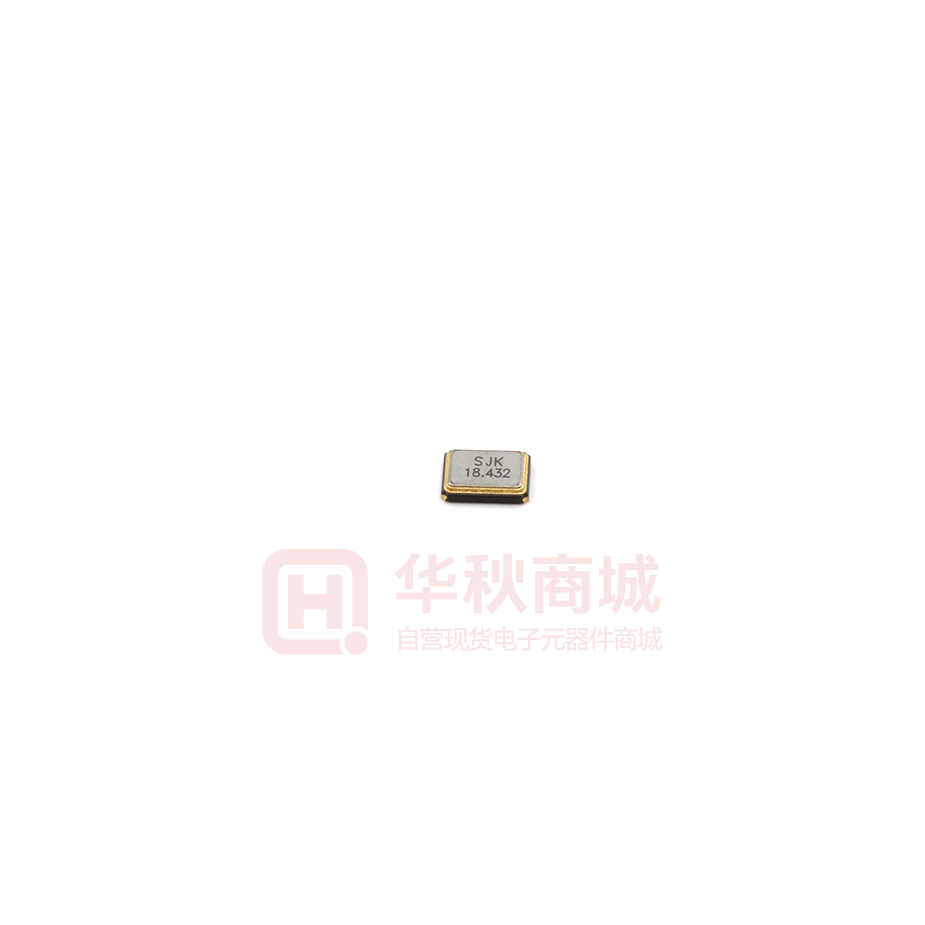

Images are for reference only

7U18432E20UCG

  • Mfr Part #7U18432E20UCG
  • ManufacturerSJK
  • HQ Part #CR0251984
  • PackageSMD3225_4P
  • Lead Time Ship immediately
  • DescriptionPassive Crystal Oscillators 20pF ±10ppm 60Ω -40℃~+85℃ 18.432MHz SMD3225_4P

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Annual Aging Rate±3ppm/year
Lead Quantity4Pin
Dominant Frequency18.432000MHz
Installation TypeSMT
Frequency Error±10ppm
Size3.20 x 2.50mm
Package / CaseSMD3225_4P
Operating Temperature-40~+85℃
OvertoneFundamental
MaterialQuartz Crystal
Pb FreeYes
ApplicationWireless LAn/Bluetooth, Industrial
Product StateActive
Insulation Resistance500MΩ @ DC100V
Packaging TechnologySeam Sealing
Drive Level10μW
Shunt Capacitance(C0)3pF
Cut TypeAT Cut
Partlife CycleActive
Output WaveSine Wave
Carries tape Std8.0mm
Storage Temperature-55~+125℃
CertificationRoHS
Marking TypeLaser
Country of OriginChina
Original ManufacturerShenzhen SJK Industrial Co., Ltd.
Frequency Stability±30ppm
Series7U
Equivalent Series Resistance60Ω
Load Capacitance20pF
GradeIndustrial
Height0.70mm
