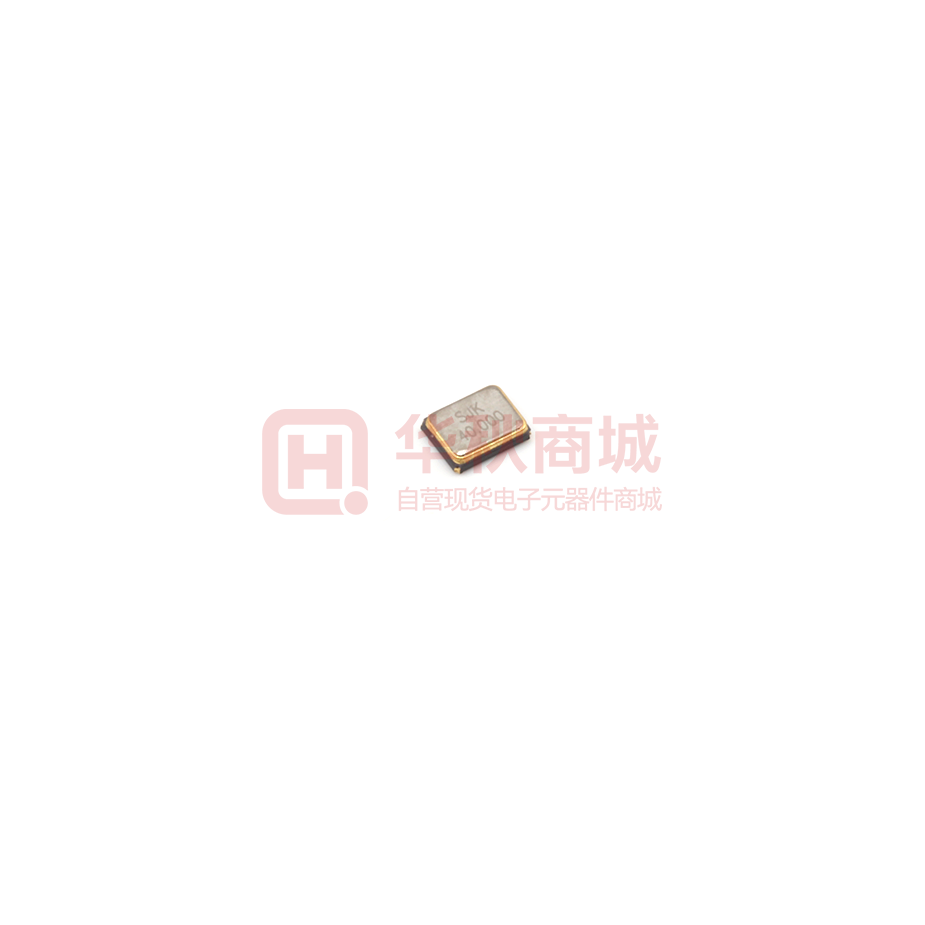

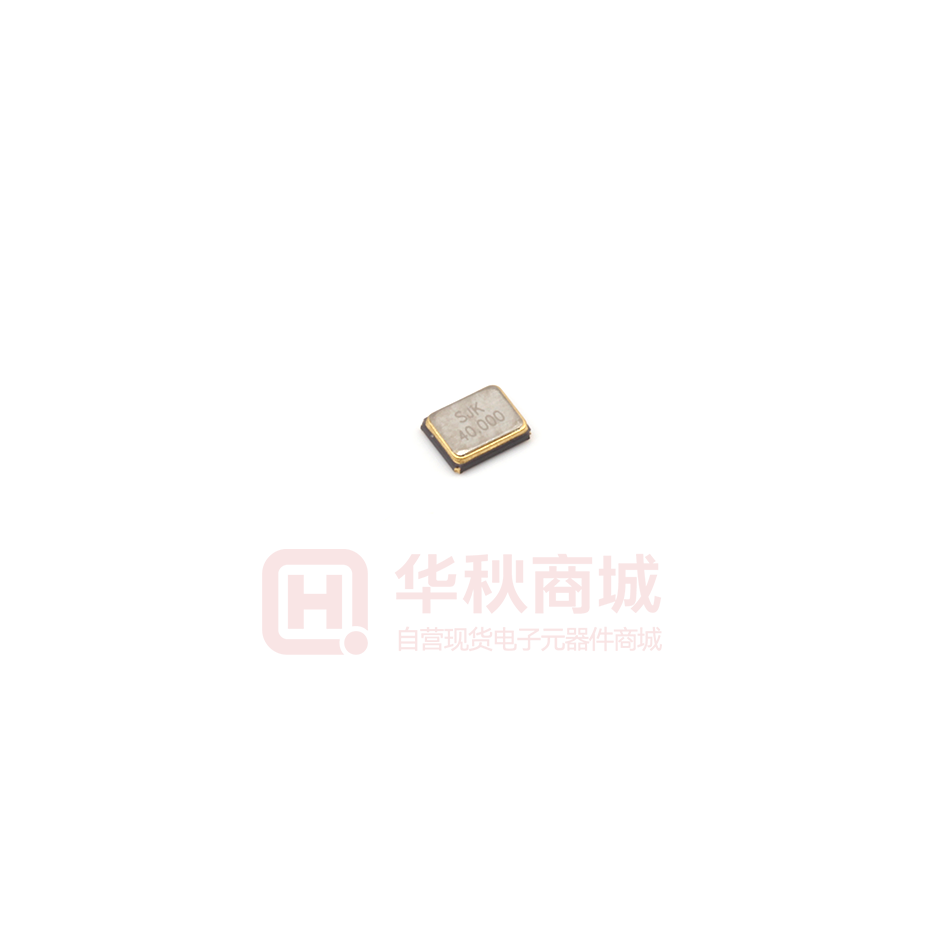

Images are for reference only

7F40000F09UCG

  • Mfr Part #7F40000F09UCG
  • ManufacturerSJK
  • HQ Part #CR0252064
  • PackageSMD2016_4P
  • Lead Time Ship immediately
  • DescriptionPassive Crystal Oscillators 40MHz 9pF ±20ppm 60Ω -40℃~+85℃ SMD2016_4P

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Annual Aging Rate±3ppm/year
Lead Quantity4Pin
Dominant Frequency40MHz
Installation TypeSMT
Frequency Error±20ppm
Size2.00 x 1.60mm
Package / CaseSMD2016_4P
Operating Temperature-40~+85℃
OvertoneFundamental
MaterialQuartz Crystal
Pb FreeYes
ApplicationConsumer
Product StateActive
Packaging TechnologySeam Sealing
Drive Level100μW
Shunt Capacitance(C0)3pF
Cut TypeAT Cut
Partlife CycleActive
Output WaveSine Wave
Carries tape Std8.0mm
Storage Temperature-55~+125℃
CertificationRoHS
Marking TypeLaser
Country of OriginChina
Original ManufacturerShenzhen SJK Industrial Co., Ltd.
Frequency Stability±30ppm
Series7F
Equivalent Series Resistance60Ω
GradeConsumer
Height0.50mm
