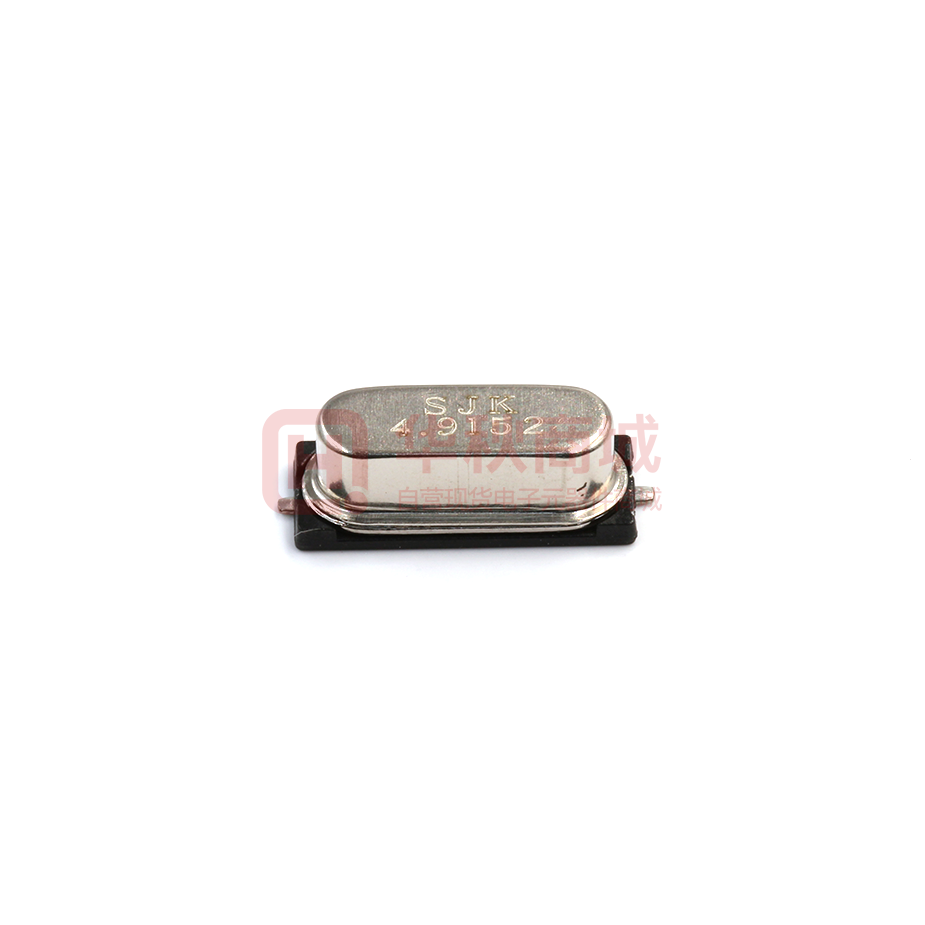

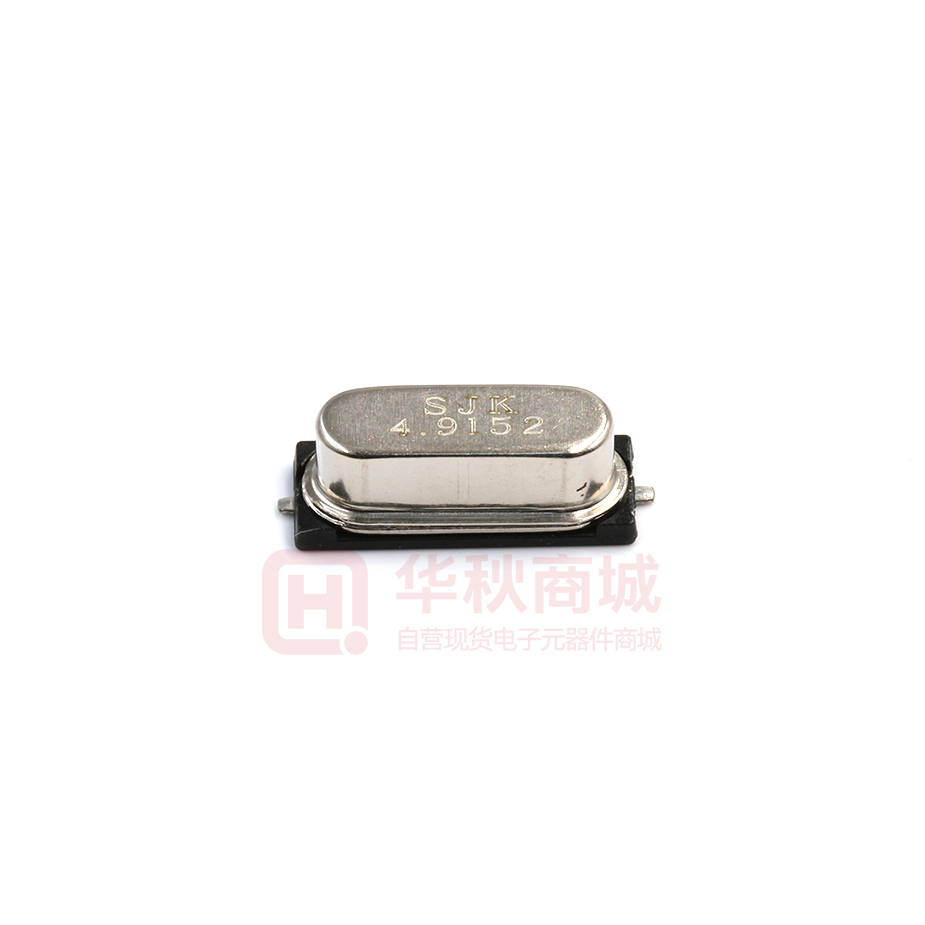

Images are for reference only

6CSS04915AG20UCG

  • Mfr Part #6CSS04915AG20UCG
  • ManufacturerSJK
  • HQ Part #CR0252038
  • PackageHC-49SS/SMD
  • Lead Time Ship immediately
  • DescriptionPassive Crystal Oscillators 100Ω 20pF ±30ppm -40℃~+85℃ 24.9152MHz HC-49SS/SMD

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Annual Aging Rate±3ppm/year
Lead Quantity2Pin
Dominant Frequency24.915200MHz
Installation TypeSMT
Frequency Error±30ppm
Size12.70 x 4.80mm
Package / CaseHC-49SS/SMD
Operating Temperature-40~+85℃
OvertoneFundamental
MaterialQuartz Crystal
Pb FreeYes
ApplicationConsumer
Product StateActive
Packaging TechnologyResistance weld
Drive Level100μW
Shunt Capacitance(C0)3pF
Cut TypeAT Cut
Partlife CycleActive
Output WaveSine Wave
Storage Temperature-40~+85℃
CertificationRoHS
Country of OriginChina
Original ManufacturerShenzhen SJK Industrial Co., Ltd.
Frequency Stability±30ppm
Series6C
Equivalent Series Resistance100Ω
Load Capacitance20pF
GradeConsumer
Height3.00mm
