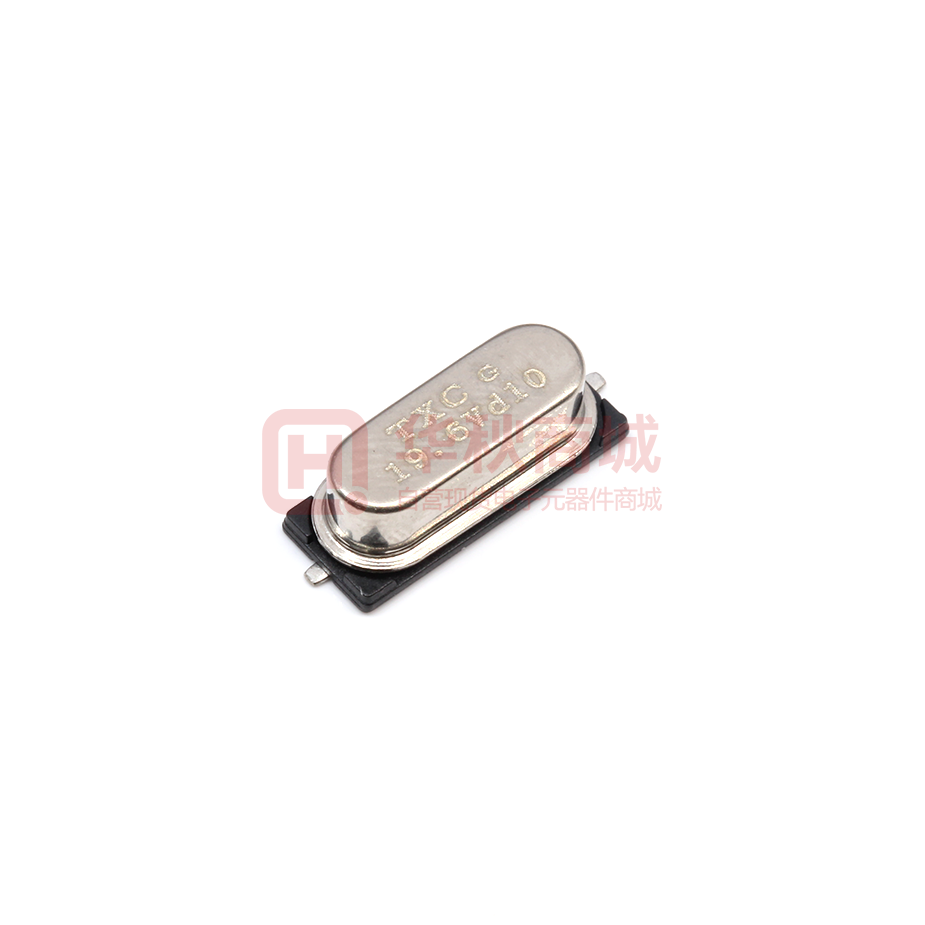

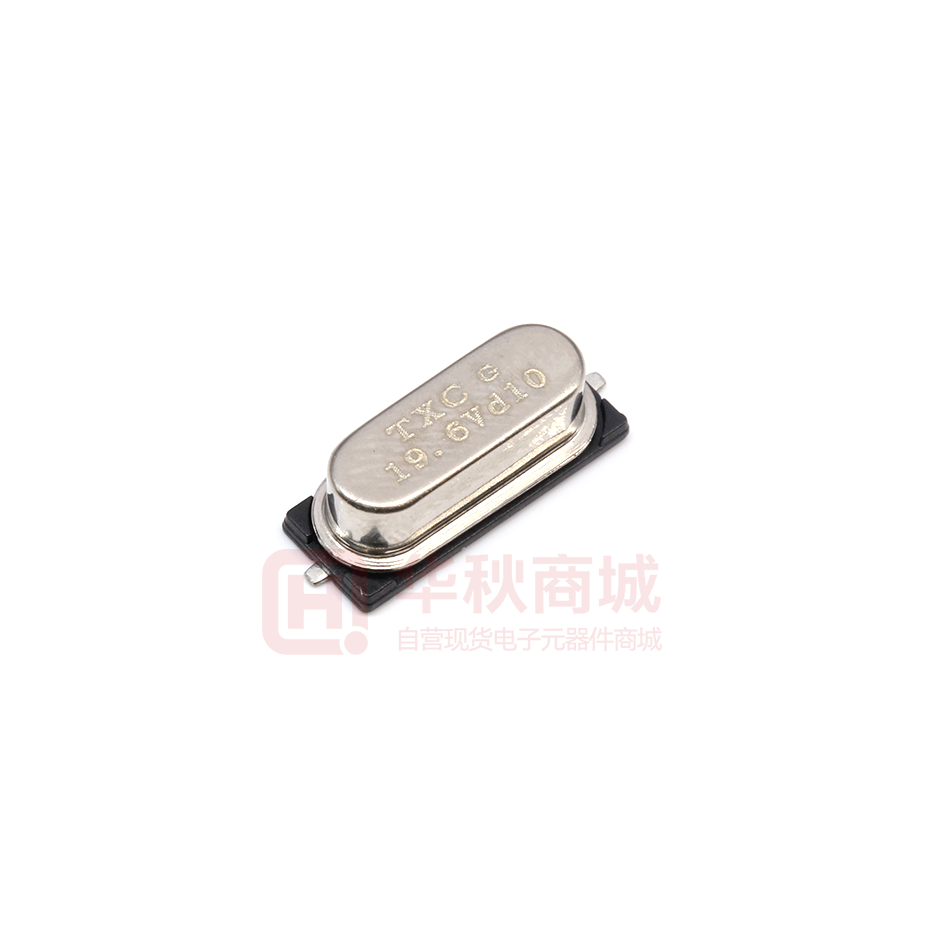

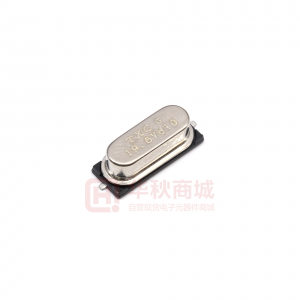

Images are for reference only

6CS19660AF18UCD

  • Mfr Part #6CS19660AF18UCD
  • ManufacturerSJK
  • HQ Part #CR0252028
  • PackageHC-49S/SMD
  • Lead Time Ship immediately
  • DescriptionPassive Crystal Oscillators 18pF 30Ω ±20ppm -40℃~+85℃ HC-49S/SMD 19.6608MHz

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Annual Aging Rate±3ppm/year
Lead Quantity2Pin
Dominant Frequency19.660800MHz
Installation TypeSMT
Frequency Error±20ppm
Size11.40 x 4.80mm
Package / CaseHC-49S/SMD
Operating Temperature-40~+85℃
OvertoneFundamental
MaterialQuartz Crystal
Pb FreeYes
ApplicationConsumer
Product StateActive
Packaging TechnologyResistance weld
Drive Level100μW
Shunt Capacitance(C0)3pF
Cut TypeAT Cut
Partlife CycleActive
Output WaveSine Wave
Storage Temperature-40~+85℃
CertificationRoHS
Marking TypeLaser
Country of OriginChina
Original ManufacturerShenzhen SJK Industrial Co., Ltd.
Frequency Stability±30ppm
Series6C
Equivalent Series Resistance30Ω
Load Capacitance18pF
GradeConsumer
Height4.00mm
