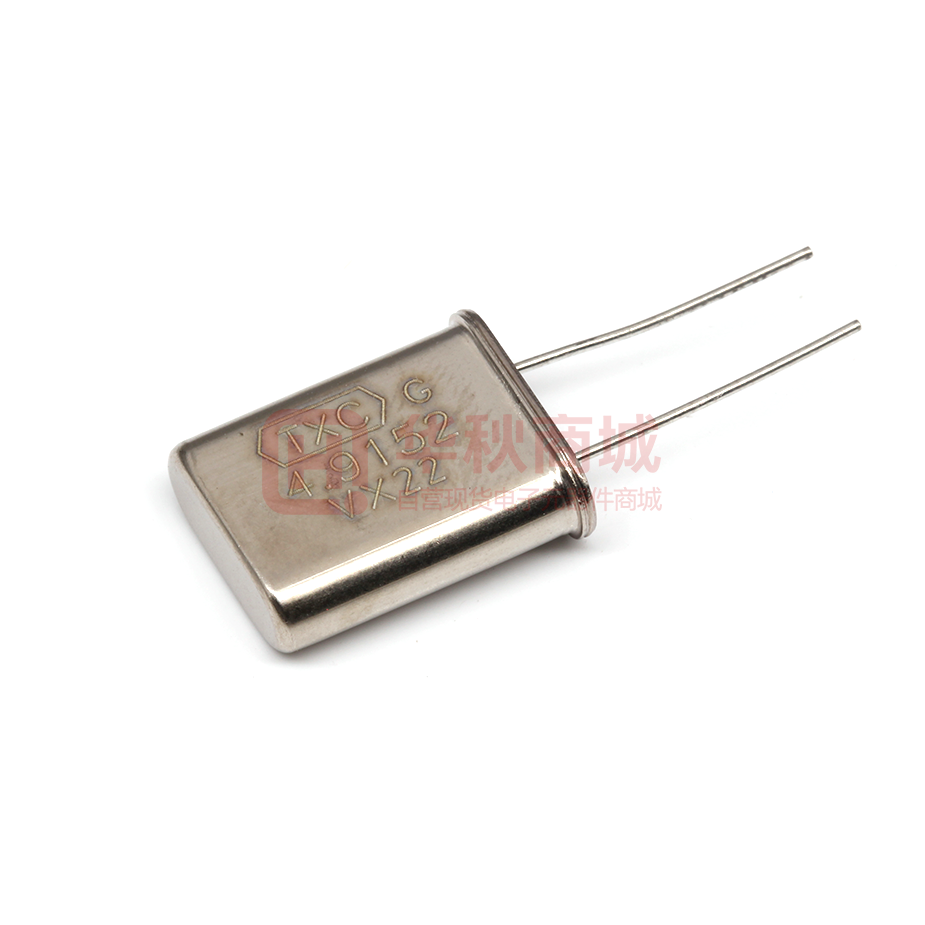

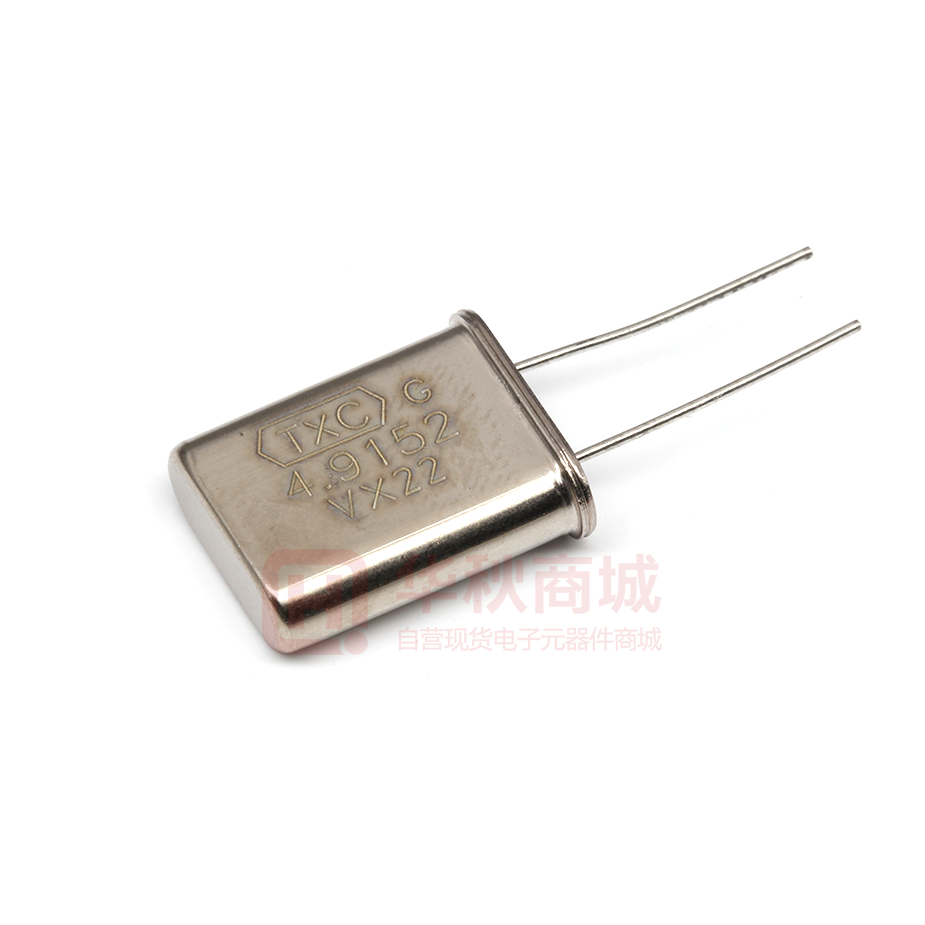

Images are for reference only
6A04915AF20UCG
- Mfr Part #6A04915AF20UCG
- ManufacturerSJK
- HQ Part #CR0252002
- PackageHC49U
- Lead Time Ship immediately
DescriptionPassive Crystal Oscillators 4.9152MHz 20pF ±20ppm 60Ω -40℃~+85℃ HC49U
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Annual Aging Rate | ±3ppm/year | |
| Lead Quantity | 2Pin | |
| Dominant Frequency | 4.9152MHz | |
| Installation Type | DIP | |
| Frequency Error | ±20ppm | |
| Size | 11.05 x 4.65mm | |
| Package / Case | HC49U | |
| Operating Temperature | -40~+85℃ | |
| Overtone | Fundamental | |
| Pb Free | Yes | |
| Application | Consumer | |
| Product State | Active | |
| Packaging Technology | Resistance weld | |
| Drive Level | 100μW | |
| Shunt Capacitance(C0) | 7pF | |
| Partlife Cycle | Active | |
| Output Wave | Sine Wave | |
| Storage Temperature | -55~+125℃ | |
| Certification | RoHS | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen SJK Industrial Co., Ltd. | |
| Frequency Stability | ±30ppm | |
| Series | 6A | |
| Equivalent Series Resistance | 60Ω | |
| Load Capacitance | 20pF | |
| Grade | Consumer | |
| Height | 13.46mm |
