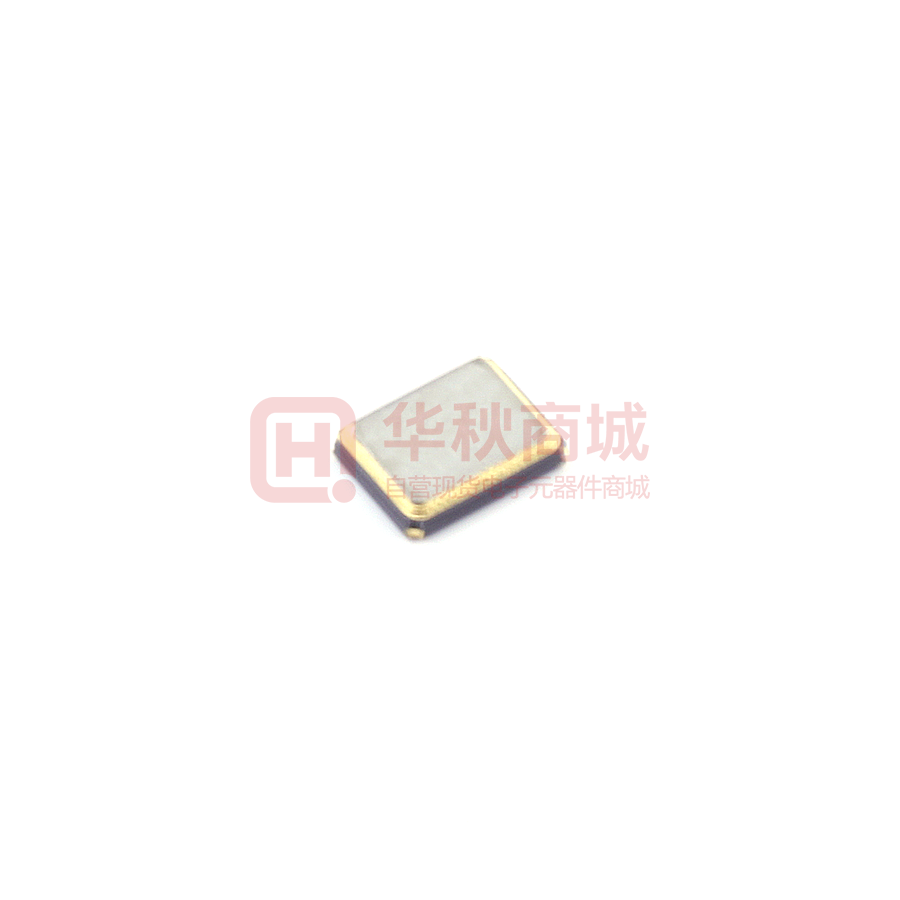

Images are for reference only
ABM8-166-114.285MHZ-T2
- Mfr Part #ABM8-166-114.285MHZ-T2
- ManufacturerAbracon
- HQ Part #CR0077583
- PackageSMD3225_4P
- Lead Time Ship immediately
DescriptionPassive Crystal Oscillators 18pF 114.285MHz ±20ppm -40℃~+85℃ 62Ω SMD3225_4P
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Annual Aging Rate | ±2ppm/year | |
| Lead Quantity | 4Pin | |
| Dominant Frequency | 114.285MHz | |
| Installation Type | SMT | |
| Frequency Error | ±20ppm | |
| Type | MHz Crystal | |
| Size | 3.20 x 2.50mm | |
| Package / Case | SMD3225_4P | |
| Operating Temperature | -40~+85℃ | |
| Overtone | 3rd Overtone | |
| Material | Quartz Crystal | |
| Pb Free | Yes | |
| Product State | Active | |
| Insulation Resistance | 500MΩ @ DC100V | |
| Drive Level | 10μW | |
| Shunt Capacitance(C0) | 1.8pF | |
| Cut Type | AT Cut | |
| Partlife Cycle | Active | |
| Carries tape Std | 8.0mm | |
| Storage Temperature | -55~+125℃ | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Abracon Corporation | |
| Frequency Stability | ±20ppm | |
| Series | ABM8 | |
| Equivalent Series Resistance | 62Ω | |
| Load Capacitance | 18pF | |
| Grade | - | |
| Height | 0.75mm |
