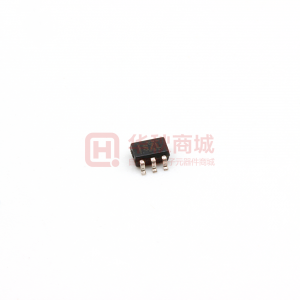

Images are for reference only

LED Lighting Drivers TI TPS61169DCKR

  • Mfr Part #TPS61169DCKR
  • ManufacturerTI
  • HQ Part #IC0003129
  • PackageSC70-5
  • Lead Time Ship immediately
  • DescriptionSC-70-5 LED Drivers ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Drive Type-
LED Drive Current (Max, Single Channel)1.8A
Dimming TypePWM
Output Current1.8A
Working Frequency 1.2MHz
Supply Voltage (Minimum)2.7V
TypeDCDC Regulator
Output Voltage -
Number Of Outputs1
Switching Frequency 1.2MHz
Topological Structure -
Built In Switch Tube-
Package / CaseSC70-5
Installation TypeSMT
Supply Voltage5.5V
Input Voltage Range2.7V~5.5V
Internal SwitchYes
Original ManufacturerTexas Instruments Incorporated
Output Current Of Each Channel-
Size2.15 x 1.40mm
Operating Temperature-40~+125℃
