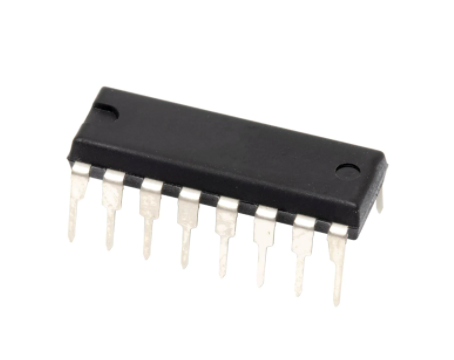

Images are for reference only
AD625JNZ
- Mfr Part #AD625JNZ
- ManufacturerAnalog Devices, Inc.
- HQ Part #ZHLM0193043
- PackagePDIP16_19.18X6.61MM
- Lead Time Ship immediately
DescriptionInstrumentation Amplifiers 5V/μs ±6~±18V PDIP16_19.18X6.61MM
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Output Current Of Each Channel | - | |
| Input Bias Current | 30nA | |
| -3db Bandwidth | 650kHz | |
| Gain Bandwidth Product (Gbp) | 25MHz | |
| Pendulum Rate | 5V/μs | |
| Type Of Output | - | |
| Operating Temperature | 0~+70℃ | |
| Installation Type | DIP | |
| Supply Voltage, Single/Double (±) | ±6V~18V | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 16Pin | |
| Height | 4.32mm | |
| L x W/Size | 19.18 x 6.61mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Analog Devices, Inc. | |
| Brand | ADI | |
| Number Of Channels | 1 |
