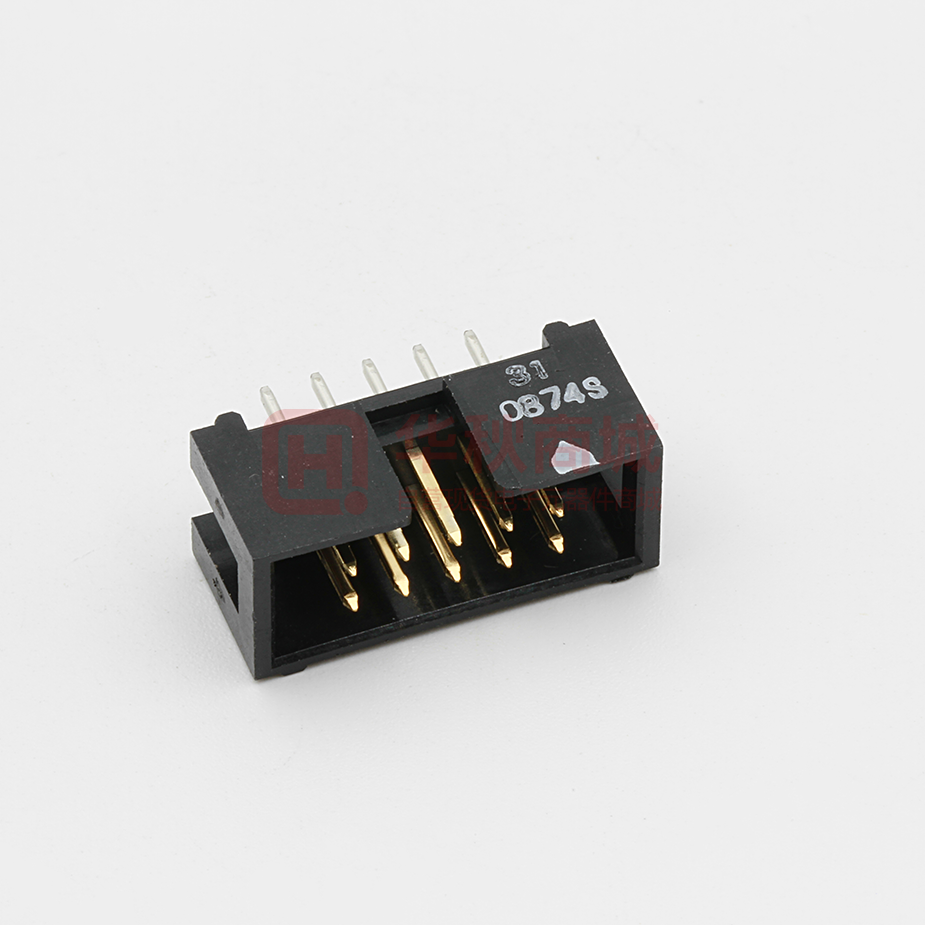

Images are for reference only

XG4C-1031

  • Mfr Part #XG4C-1031
  • ManufacturerOmron
  • HQ Part #CO0002782
  • PackageCONN_20X8.2MM_TM
  • Lead Time Ship immediately
  • DescriptionDistance between two beef seats: 2.54mm Number of PINs in each row: 5 Number of rows: 2 Number of straight contacts Plating: gold

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Matched Line Spacing0.100"(2.54mm)
ApplicationIndustrial,
Wire Gauge Or Range - Awg28 AWG
Row Spacing2.54mm
Intrusion Protection-
Rated Voltage300V
Package / CaseAccessories_20X8.2MM_TM
Contact Material -
Characteristic-
Rated Current3A
Operating Temperature-55~+105℃
Flammability Grade Of MaterialsUL94V-0
Contact Coating Thickness0.15um
Termination-
Installation TypeDIP
Contact Type-
Row Number2Row
Number of Positions10Pins
Connector Type-
Style-
Mounting OrientationHorizontal
Application LevelIndustrial
Partlife CycleActive
Storage Temperature-55~+105℃
CertificationRoHS
Country of OriginJapan
Size20.00 x 8.20mm
ManufacturerOmron Corporation
Height8.50mm
Part StatusActive
SeriesXG4
Manufacturer'S Standard Lead Time-
Lead Free Or NotYes
Moisture Sensitivity Level (MSL)-
ColourBlack
