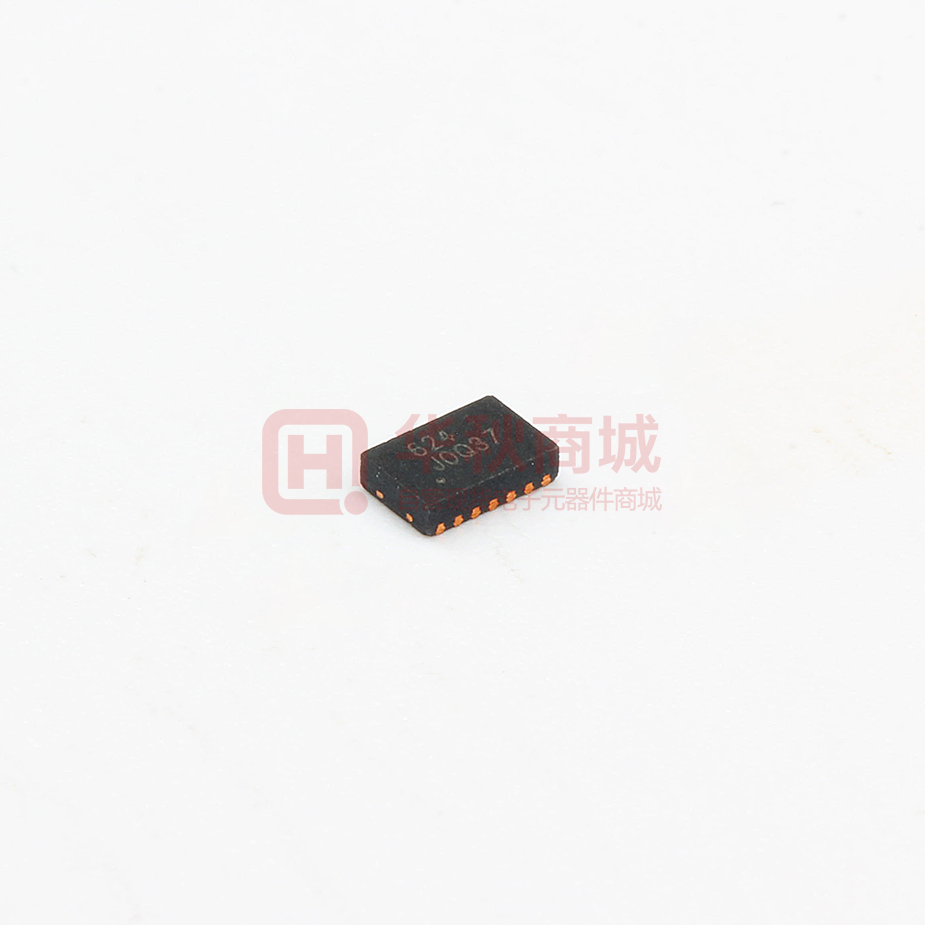

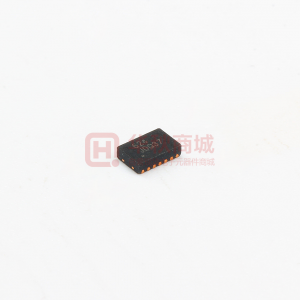

Images are for reference only
RS624XTDB14
- Mfr Part #RS624XTDB14
- ManufacturerRUNIC
- HQ Part #IC0445522
- PackageTDFN14L_3X2MM_EP
- Lead Time Ship immediately
DescriptionGeneral Purpose Amplifiers TDFN14L_3X2MM_EP 4Channel 7MHz 3.7V/µs
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Operating Supply Current | 1μA | |
| Input Bias Current | 1pA | |
| Gain Bandwidth Product (Gbp) | 7MHz | |
| Pendulum Rate | 3.7V/μs | |
| Type Of Output | Rail-to-Rail | |
| Operating Temperature | -40℃~+125℃ | |
| Installation Type | SMT | |
| Input Offset Voltage (Vos) | 3mV | |
| Package / Case | TDFN14L_3X2MM_EP | |
| Common Mode Rejection Ratio - CMRR | 92dB | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 14Pin | |
| Height | 0.80mm | |
| L x W/Size | 3.00 x 2.00mm | |
| Certification | RoHS | |
| Country of Origin | China | |
| Original Manufacturer | Jiangsu Runic Technology Co., Ltd. | |
| Supply Voltage | 5.5V | |
| Number Of Channels | 4 |
