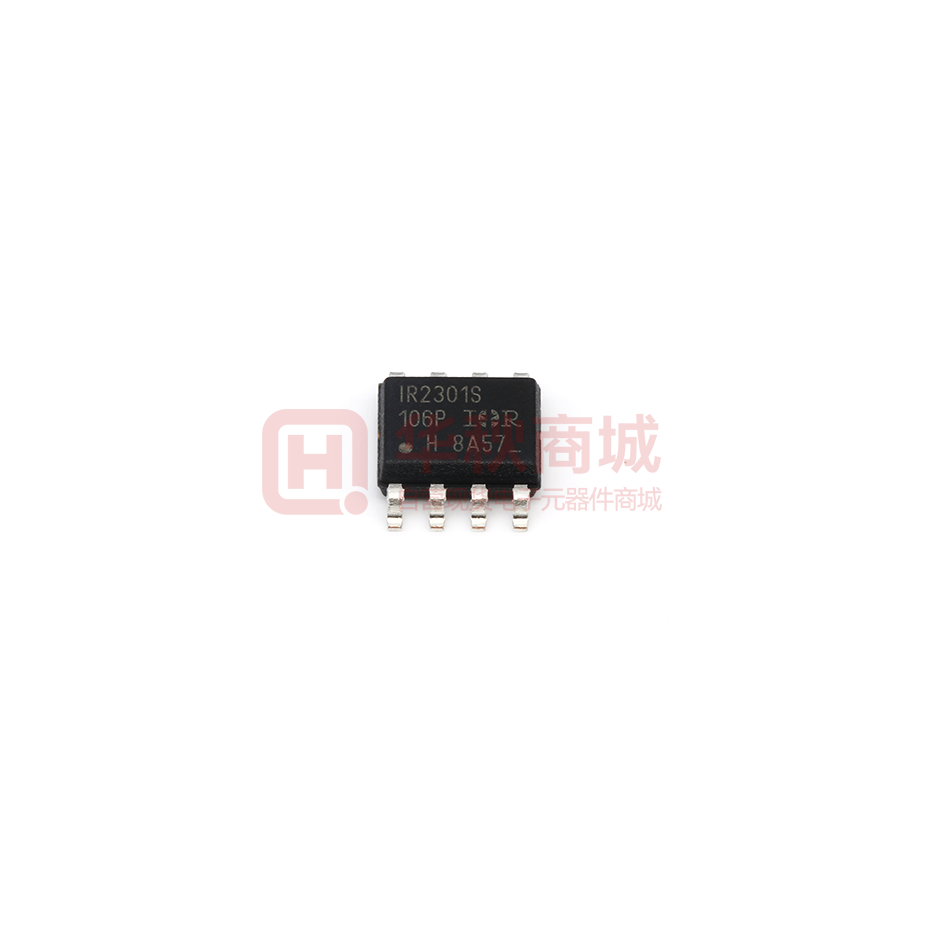

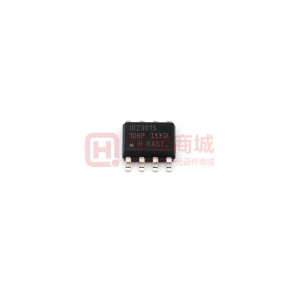

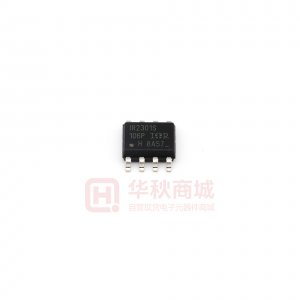

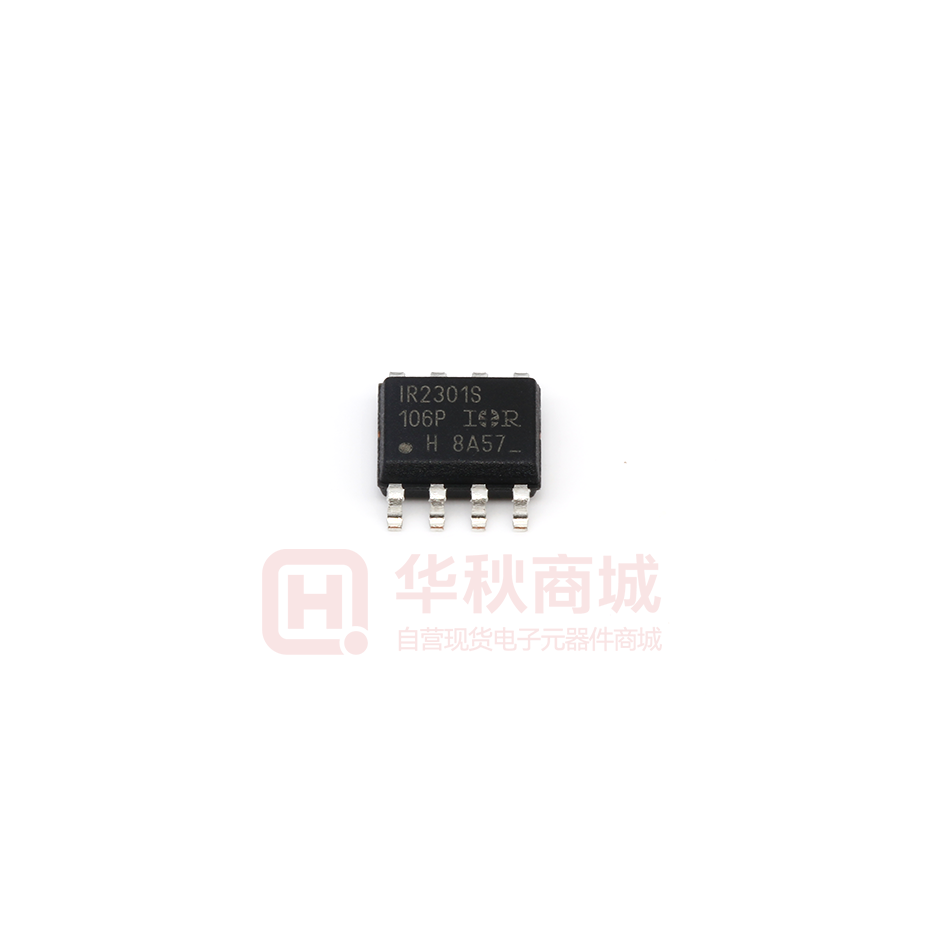

Images are for reference only


  • Mfr Part #IR2301STRPBF
  • ManufacturerInfineon
  • HQ Part #IC0011995
  • PackageSOIC8_150MIL
  • Lead Time Ship immediately
  • Description350mA 5V~20V 200mA SOIC-8 Gate Drive ICs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Output Current120mA
Type Of Output-
Package / CaseSOIC8_150MIL
Installation TypeSMT
Rise/Fall Time130,50ns
Channel TypeIndependent
Supply Voltage5~20V
Original ManufacturerInfineon Technologies AG
Size4.90 x 3.90mm
Operating Temperature-40~+150℃
Input TypeNon-Inverting
Logic Voltage - Vil, Vih0.8V,2.9V
Grid TypeIGBT, N-Channel MOSFET
Number Of Drives2
