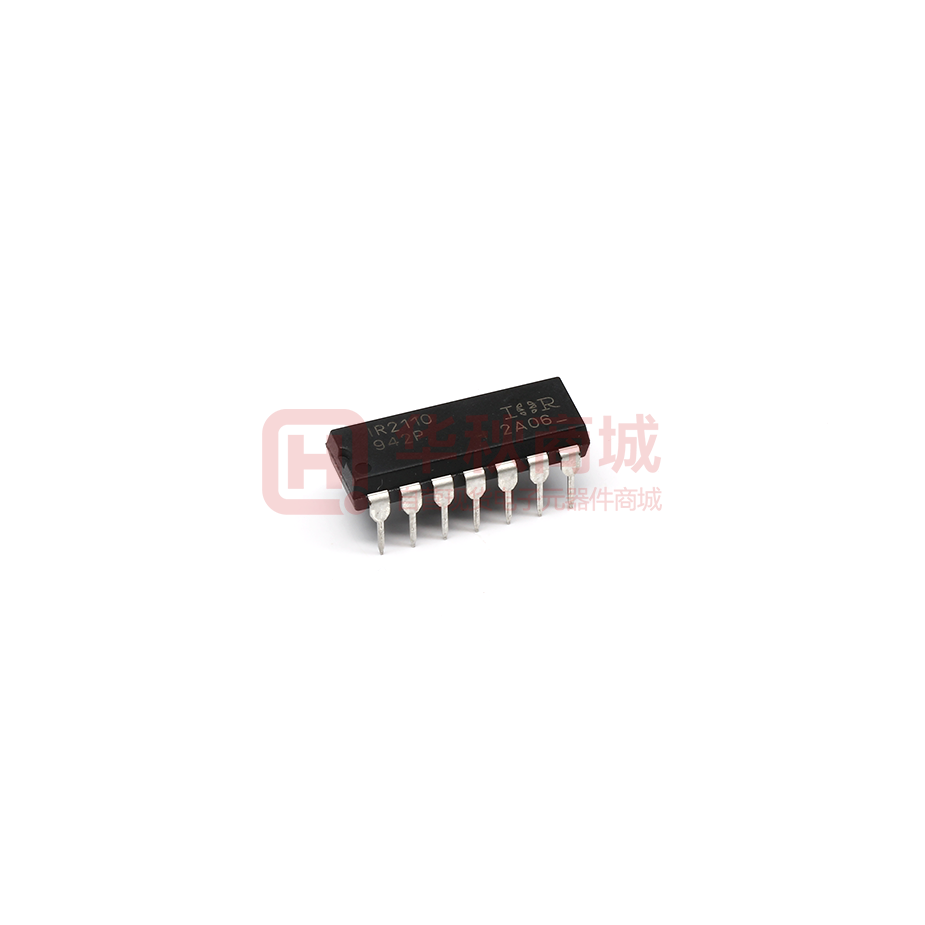

Images are for reference only

IR2110PBF

  • Mfr Part #IR2110PBF
  • ManufacturerInfineon
  • HQ Part #IC0011891
  • PackagePDIP14_19.69X6.6MM
  • Lead Time Ship immediately
  • DescriptionDIP-14 Gate Drive ICs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity14Pins
Type Of Output-
Package / Case-
Installation TypeDIP
Rise/Fall Time25ns,17ns
Channel TypeIndependent
Supply Voltage3.3~20V
Storage Temperature-55~+150℃
Original ManufacturerInfineon Technologies AG
BrandInfineon
Height5.33mm
Size19.69 x 6.60mm
Operating Temperature+150℃(TJ)
Input TypeNon-Inverting
Logic Voltage - Vil, Vih6V,9.5V
Grid TypeIGBT, N-Channel MOSFET
Number Of Drives2
Series-
