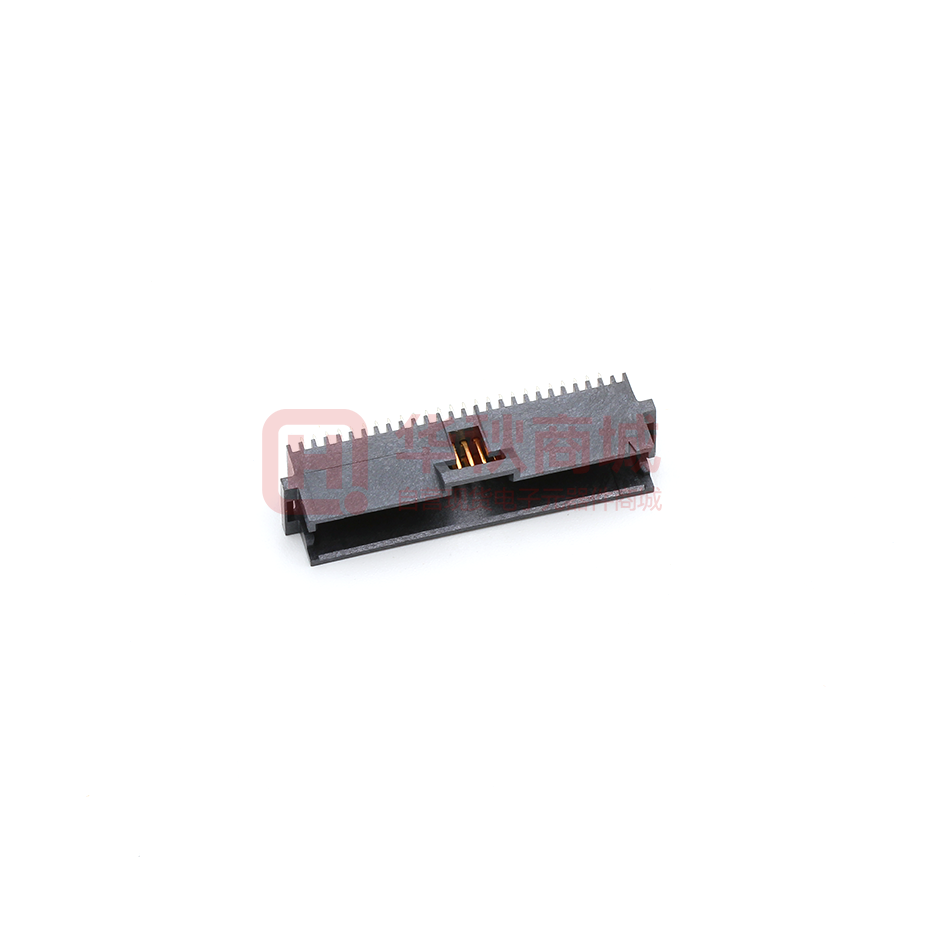

Images are for reference only
Board to Board Connectors TE 5-104068-5
- Mfr Part #5-104068-5
- ManufacturerTE
- HQ Part #CO0003338
- PackageCONN_35.05X8.72MM_TM
- Lead Time Ship immediately
DescriptionPCB Mount Header, Vertical, Board-to-Board, 50 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, AMPMODU System 50
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Contact Length Of Terminal | 0.100"（2.54mm） | |
| Mating Contact Length | 0.125"（3.18mm） | |
| Shield | - | |
| Contact Surface Treatment Thickness - Column | 150µin（3.81µm） | |
| Contact Surface Treatment Thickness - Matching | 30µin（0.76µm） | |
| Contact Surface Treatment - Matching | - | |
| Contact Surface Treatment - Column | - | |
| Matched Line Spacing | 2.54mm | |
| Application | Automotive, General Motors, Industrial, Medical | |
| Insulation Height | 0.390"（9.91mm） | |
| Contact Shape | - | |
| Row Spacing | 2.54mm | |
| Insulating Material | - | |
| Fastening Type | - | |
| Insulation Color | - | |
| Spacing | 1.27mm | |
| Packing | Tube Packing | |
| Intrusion Protection | - | |
| Rated Voltage | 30V | |
| Package / Case | CONN_35.05X8.72MM_TM | |
| Contact Material | - | |
| Characteristic | - | |
| Rated Current | 3.6A | |
| Operating Temperature | -65~+105℃ | |
| Flammability Grade Of Materials | UL94V-0 | |
| Contact Coating Thickness | 0.76µm | |
| Contact Coating | Gold | |
| Termination | Solder | |
| Installation Type | DIP | |
| Contact Type | - | |
| Row Number | 2 | |
| Number of Positions | 50Pin | |
| Connector Type | Connector | |
| Style | Board to Cable/Wire | |
| Mounting Orientation | Vertical | |
| Connector System | Plate to plate | |
| Partlife Cycle | Active | |
| MPQ | 13pcs | |
| Country of Origin | Switzerland | |
| Number Of Stitches | 50 | |
| Size | 35.05 x 8.72mm | |
| Manufacturer | TE Connectivity | |
| Number Of Pins Loaded | - | |
| Height | 9.91mm | |
| Part Status | - | |
| Series | AMPMODU System 50 | |
| Manufacturer'S Standard Lead Time | - | |
| Lead Free Or Not | Yes | |
| Moisture Sensitivity Level (Msl) | - | |
| Colour | Black |
