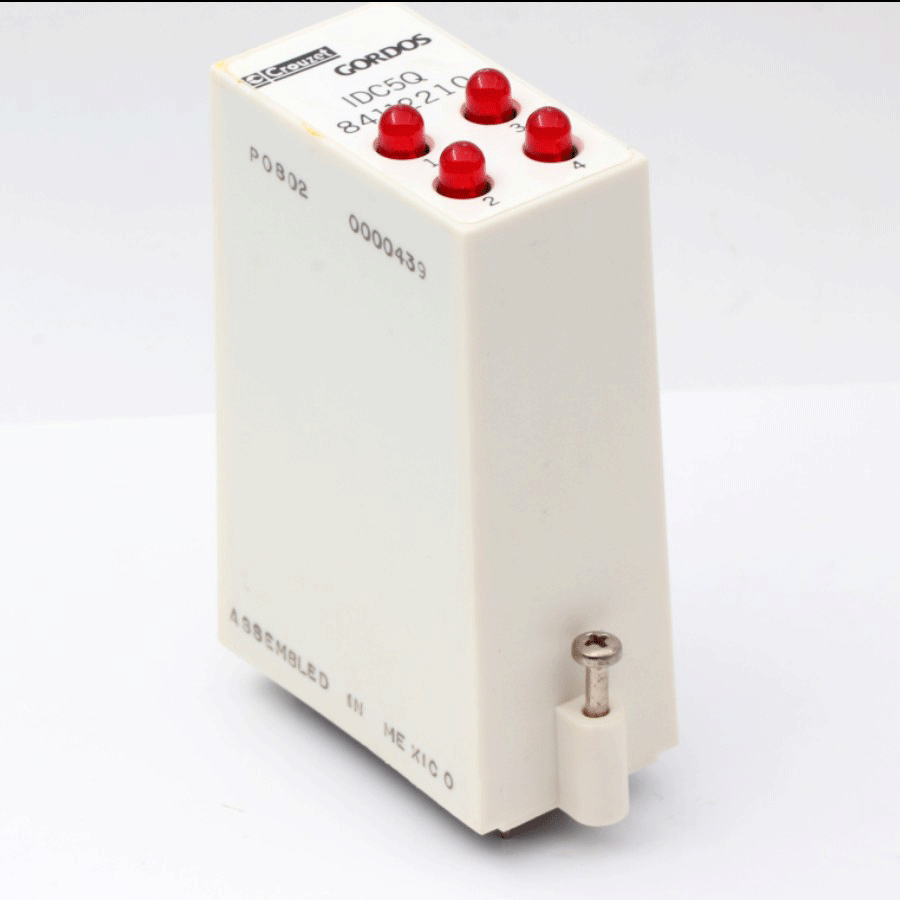

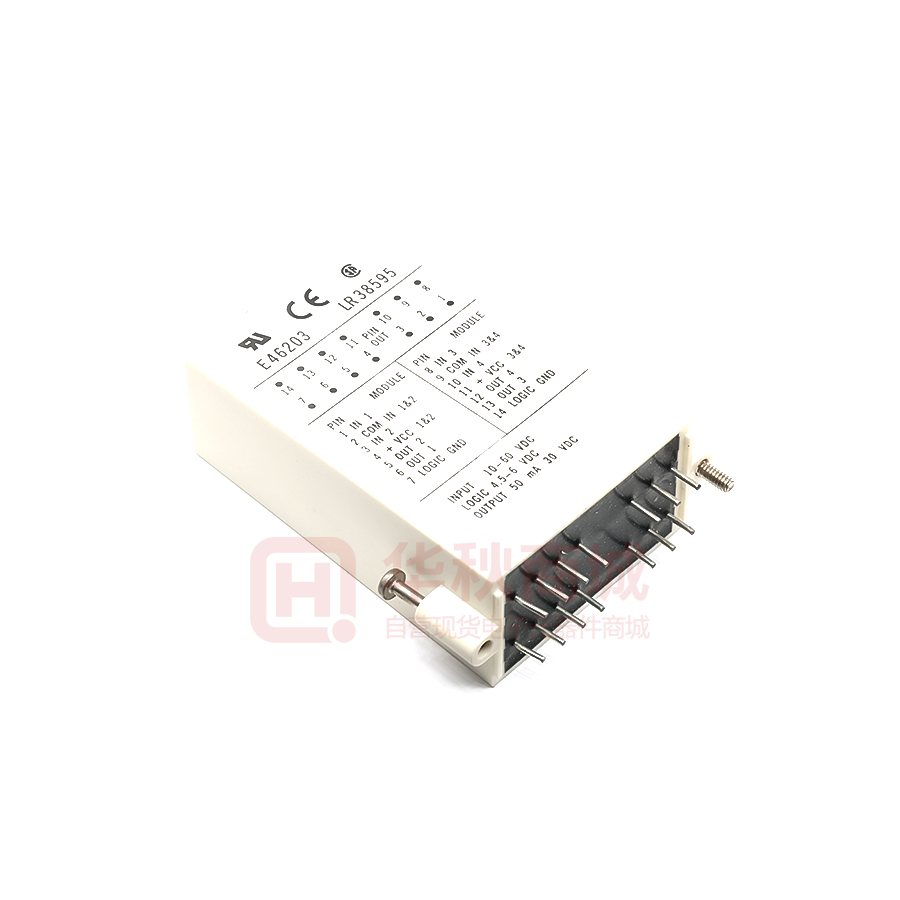

Images are for reference only

Analog Signal Isolation Modules Opto IDC5Q

  • Mfr Part #IDC5Q
  • ManufacturerOpto
  • HQ Part #RE0187806
  • PackageMODULE_59.34x29.6MM_TM
  • Lead Time Ship immediately
  • DescriptionAnalog Signal Isolation Modules 29mA 59.34 x 29.60mm 12V 32V MODULE_59.34x29.6MM_TM

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Number Of Circuit Groups (Number Of Channels)4Channel
Installation TypeDIP
Operating Current29mA
Package / CaseMODULE_59.34x29.6MM_TM
Input typeAC
Supply Voltage Max32V
Supply Voltage Min12V
Partlife CycleActive
L x W/Size59.34 x 29.60mm
Country of OriginAmerica
Original ManufacturerOpto Diode Corporation
Isolation Voltage4KV
Part StatusActive
Operating Temperature-30~+70℃
Package / CaseThrough Hole
Off Time20ms
On Time20ms
Input Current34mA
Input Voltage 12~48VDC
