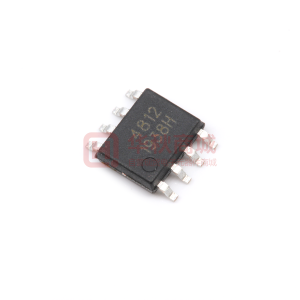

Images are for reference only
AC4812
- Mfr Part #AC4812
- ManufacturerAsiaChip
- HQ Part #DS0140529
- PackageSOP-8
- Lead Time Ship immediately
Description30V /6A Dual 2N Power MOSFET
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Dual | |
| Continuous Drain Current | 6A | |
| Grid Charge (Qg) | 2.55nC | |
| Threshold Voltage | 1.8V | |
| Drain Source Voltage (Vdss) | 30V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | SMT | |
| Transistor Type | 2 N-Channel(Dual) | |
| Package / Case | SOP-8 | |
| Conduction Resistance (RDS (on) @ Vgs, Id) | 46.2mΩ | |
| Power Dissipation | 2W | |
| Total Gate Charge | 2.55nC | |
| Reverse Transfer Capacitance | 35pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 30V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 8Pin | |
| Height | - | |
| L x W/Size | - | |
| Certification | RoHS | |
| Printing Code | 4812 | |
| Country of Origin | China | |
| Original Manufacturer | AsiaChip Co., Ltd. | |
| Input Capacitance Ciss | 311pF | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
