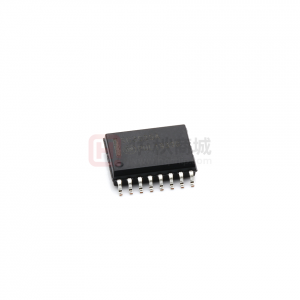

DC-DC Switching Control Chips ON SG3525ADWR2G

  • Mfr Part #SG3525ADWR2G
  • ManufacturerON
  • HQ Part #IC0054846
  • PackageSOIC16_300MIL
  • Lead Time Ship immediately
  • DescriptionSOIC-16-7.8mm AC-DC Controllers & Regulators ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity16Pin
Clock SynchronizationYES
Output Phase1
Output Current100mA
Type Of OutputTransistor Driver
Output ConfigurationPositive
Number Of Outputs2
Switching Frequency 100Hz~400kHz
Supply Voltage (Vcc/Vdd)8V~35V
Topological Structure -
Package / CaseSOIC16_300MIL
Installation TypeSMT
Supply Voltage8~35V
Partlife CycleActive
Storage Temperature-55~+125℃
Country of OriginAmerica
Original ManufacturerON Semiconductor Inc.
Control CharacteristicsEnable, Frequency Control, Soft Start
Duty Cycle49%
Operating Temperature+150℃
