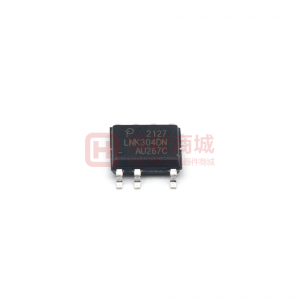

Images are for reference only
LNK304DN-TL
- Mfr Part #LNK304DN-TL
- Manufacturerpower
- HQ Part #UN0002602
- PackageSOIC8C_150MIL
- Lead Time Ship immediately
DescriptionAC-DC Switching Power Supply Chips SOIC8C_150MIL 85V~265V
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Lead Quantity | 7Pin | |
| Output Current | 120mA | |
| Operating Current | 200μA | |
| Output Voltage | 12V | |
| Output Power | - | |
| Switching Frequency | 66KHz | |
| Topological Structure | Buck,Buck-Boost,Flyback | |
| Package / Case | SOIC8C_150MIL | |
| Installation Type | SMT | |
| Working Voltage | 85V~265V | |
| Partlife Cycle | Active | |
| Application Level | Industrial | |
| Storage Temperature | -65℃~+150℃ | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Power Integrations Inc. | |
| Height | 1.65mm | |
| Size | 4.90 x 3.90mm | |
| Duty Cycle | 69% | |
| Operating Temperature | -40℃~+150℃ | |
| Series | LinkSwitch®-TN | |
| Lead Free Or Not | Yes |
